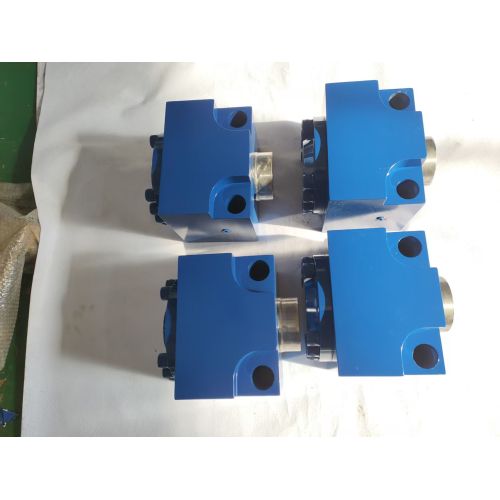

Rolling Mill Rod and Wire Locking Hydraulic Cylinder

Rolling Mill Rod and Wire Locking Hydraulic Cylinder

Name: 165 120-10.5 ODM OEM Hydraulic Cylinder
Uploaded: 2025-12-24T12:05:55+08:00
Description: Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder The

$600-1000 /

Payment Type:	L/C,T/T,Paypal
Incoterm:	CIF,EXW,FOB,DDP
Min. Order:	1
Transportation:	Ocean,Land,Air

Contact Now

Product Description

Product Attributes

Model No.: 165 120-10.5

Brand: Guoyue

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Indonesia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Online Support, Video Technical Support

Support Customization: Oem, Odm

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

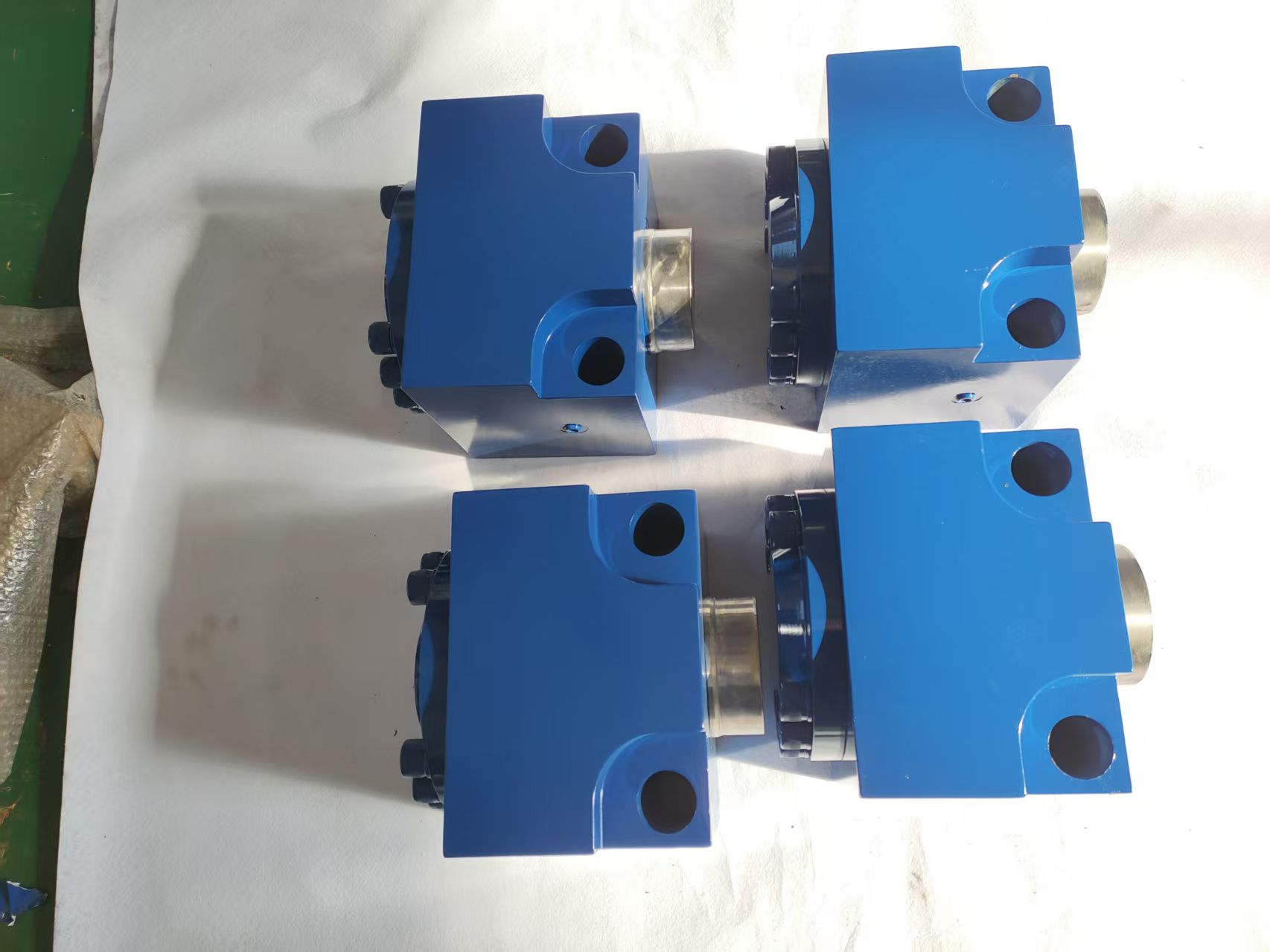

165 120-10.5 ODM OEM Hydraulic Cylinder



Product Description

Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder

The following are its main characteristics:

1.High responsiveness and fast action

Short stroke, high-frequency operation: The stroke is usually short (tens to hundreds of millimeters), but the action frequency is high (several to ten times per minute), requiring the oil cylinder to start and stop quickly and without lag.

Low inertia design: The piston and piston rod are lightweight, combined with low friction seals to improve dynamic response speed.

2. High temperature resistance and pollution prevention

The working environment is harsh: close to the red hot rolled piece (>1000 ° C), surrounded by iron oxide scale, water mist, and dust.

Protective measures:

High temperature sealing material (fluororubber, polytetrafluoroethylene composite seal)

Dust cover/bellows to protect piston rod

The surface of the piston rod is plated with hard chromium and polished (Ra ≤ 0.1 μ m) to enhance wear resistance and corrosion resistance

3. High precision positioning and repeatability

The locking position needs to be highly consistent to ensure stable clearance between the rollers, which affects the dimensional accuracy of the finished product.

Some models integrate displacement sensors (such as magnetostrictive sensors) or magnetic switch slots to achieve closed-loop control.

4. Buffer and shock absorption design

Set bidirectional buffering (B1/B2) at the locking endpoint to avoid metal impact and extend equipment life.

Built in accumulator or throttle valve to absorb hydraulic shock.

6. Typical application scenarios

Rod and wire rolling mill:

Roll locking/releasing mechanism

Roller gap adjustment (assisted by AGC pressure cylinder)

Guide lifting or clamping device

Pre cutting pinch roller control
