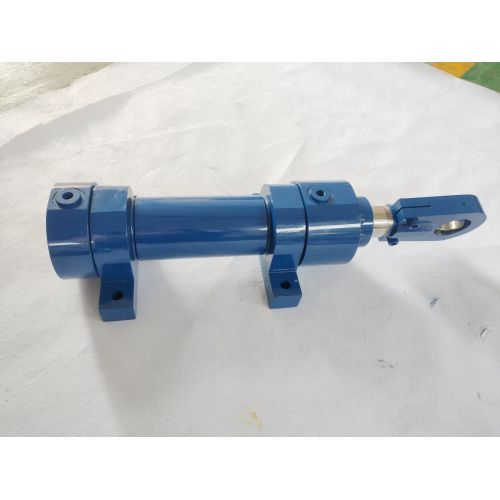

CDH1MS2 High-Pressure German Rexro Hydraulic Cylinder

CDH1MS2 High-Pressure German Rexro Hydraulic Cylinder

Name: CDH1 MS2 80 56-200
Uploaded: 2025-12-26T12:23:18+08:00
Description: Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic

$500-800 /Piece/Pieces

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW,DDP
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air

Contact Now

Product Description

Product Attributes

Model No.: 80 56-200

Brand: Guoyue

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Indonesia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Online Support, Video Technical Support

Support Customization: Oem, Odm

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

CDH1 MS2 80 56-200



Product Description

Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder

Parameter	Value
Bore Diameter	80 mm
Rod Diameter	56 mm
Stroke Length	200 mm
Working Pressure	≤ 25 MPa (standard); up to 35 MPa (peak)
Operating Temperature	-20°C to +120°C (standard); up to 180°C with high-temperature seals
Mounting Type	Clevis or front flange (as defined by "M" and "C")
Rod End Connection	Male thread (B1)
Protection Rating	IP65 or higher
Sensor Integration	Yes (U = sensor groove for position feedback)

Resistant to high temperature radiation (up to 180 ° C), high dust (such as iron oxide scale), water vapor splashing, and mechanical impact.

The sealing system (S2 level) adopts PTFE+FKM/NBR combined seal, which is anti-aging, pollution resistant and has a service life far beyond that of ordinary industrial oil cylinder.

The working pressure is as high as 25-35 MPa, providing strong thrust (the theoretical thrust of this model is about 125 kN @ 25 MPa).

The cylinder body is made of high-strength seamless steel pipe or forged steel, and the key welds have undergone non-destructive testing (NDT) to ensure long-term safe operation.
