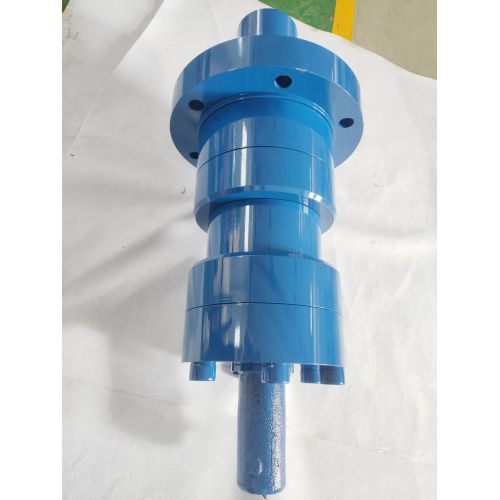

Name: OEM Famous Brand CDH1MF3/200/125/100A1X/B1CGUMWW Metallurgical Servo Belt Sensor Hydraulic Cylinder
Uploaded: 2025-12-31T07:49:13+08:00
Description: Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic

$600-800 /Piece/Pieces

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW,DDP
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air

Contact Now

Product Description

Product Attributes

Model No.: 200 125-100

Brand: guoyue

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Indonesia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Online Support, Video Technical Support

Support Customization: Oem, Odm

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

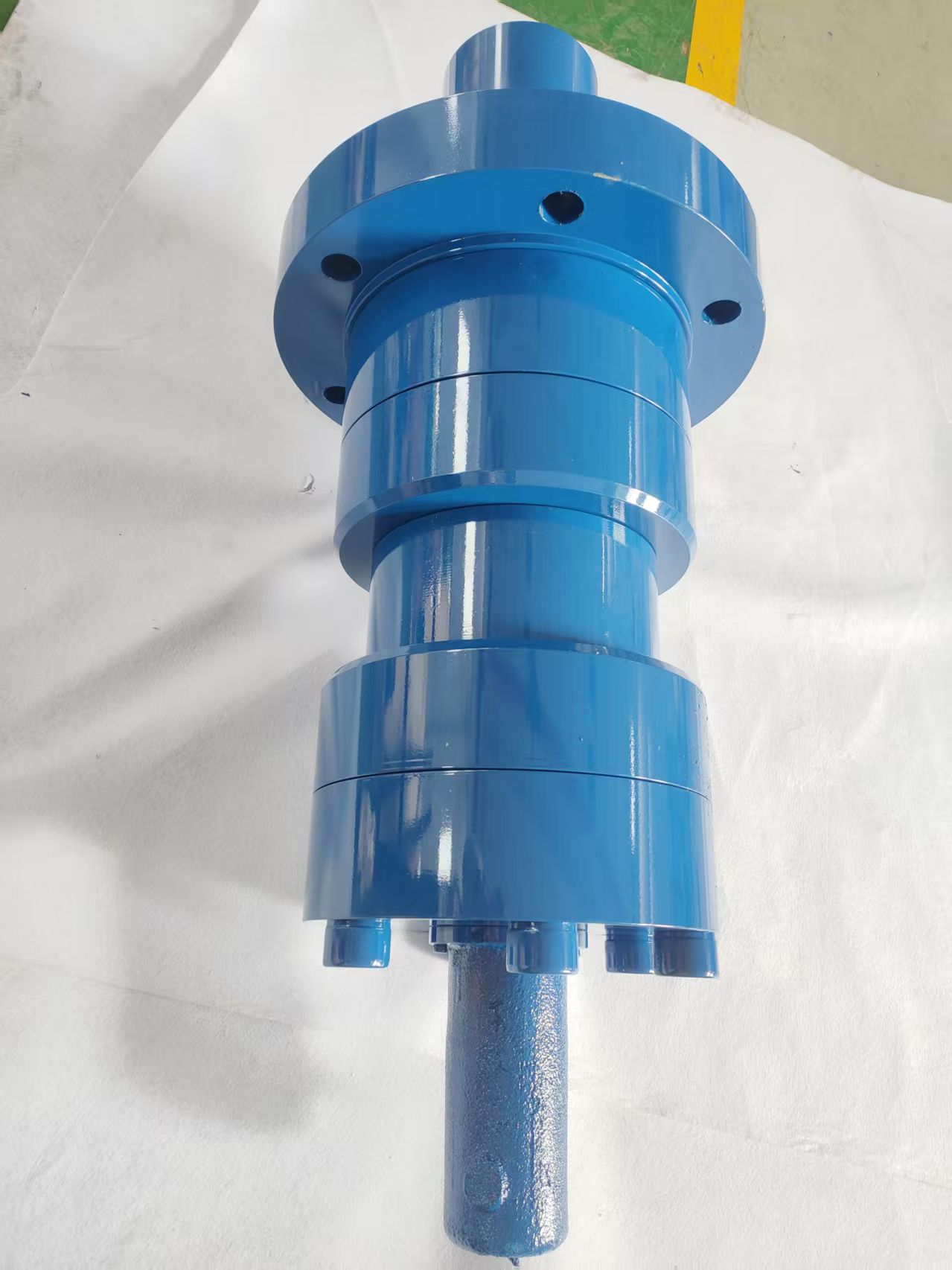

OEM Famous Brand CDH1MF3/200/125/100A1X/B1CGUMWW Metallurgical Servo Belt Sensor Hydraulic Cylinder



Product Description

Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder

CDH1MF3/200/125/100A1X/B1CGUMWW is a high-performance servo Hydraulic Cylinder designed specifically for harsh metallurgical industrial environments, integrating high-precision displacement sensors to achieve closed-loop control. Suitable for key processes such as continuous casting, rolling mill pressing, and furnace door control that require high dynamic response and millimeter level positioning accuracy.

Key characteristics and technical parameters

CDH1MF3: Series Code (Metallurgical Special Servo Cylinder)

200/125: cylinder diameter 200mm/piston rod diameter 125mm

100: Travel 100mm

A1X: Installation method (such as flange installation)

B1CGUMWW: Configuration code (including magnetostrictive displacement sensor, high-temperature seal, special coating, etc.)

Core performance:

High precision closed-loop control: Built in magnetostrictive displacement sensor (resolution ≤ 0.01mm), real-time feedback of piston position.

Metallurgical grade durability:

High temperature resistant design (working temperature can reach 120 ° C or above)

Dustproof and splash proof structure (IP67 protection level)

Piston rod coated with hard chromium and special wear-resistant coating, resistant to slag erosion

Fast dynamic response: The servo valve control system supports high-frequency action (response frequency ≥ 50Hz) to meet the fast pressing requirements of the rolling mill.

High load capacity: rated working pressure of 21MPa, thrust exceeding 600kN (calculated based on a 200mm cylinder diameter).
