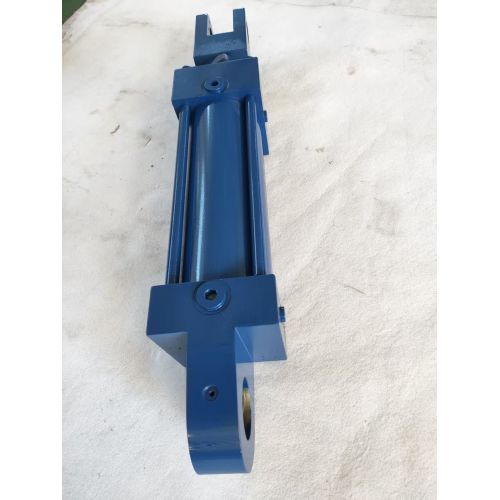

High Precision Rod Hydraulic Cylinder for Press Machine

High Precision Rod Hydraulic Cylinder for Press Machine

Name: CDT3 MP5 100 56-230 Hydraulic Cylinder
Uploaded: 2026-01-12T11:23:46+08:00
Description: Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder The

Get Latest Price

Min. Order:	1
Transportation:	Ocean,Land,Air

Contact Now

Product Description

Product Attributes

Model No.: 100 56-230

Brand: Guoyue

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Indonesia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Video Technical Support, Online Support

Support Customization: Oem, Odm

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

CDT3 MP5 100 56-230 Hydraulic Cylinder



Product Description

Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder

The CDT3MP5/100/56/230F11/B11HHDMWW is a high-precision, double-acting tie-rod Hydraulic Cylinder designed for demanding applications such as press machines. It features a robust 100 mm bore and 56 mm hard-chromed piston rod, delivering high force output and excellent resistance to wear and corrosion. Its front and rear flange mounting (F11/B11) ensures stable, rigid installation, while advanced multi-component sealing systems provide long service life and reliable leakage prevention. The cylinder is engineered for high repeatability, minimal rod deflection, and smooth operation under heavy loads, making it ideal for precision industrial pressing, forming, and assembly tasks.

Parameter	Value
Bore Diameter	100 mm
Rod Diameter	56 mm
Stroke Length	230 mm
Operating Pressure	≤21 MPa (recommended ≤16 MPa)
Mounting Style	Front Flange F11 / Rear Flange B11
Piston Rod Material	45# Steel with Hard Chrome Plating (≥0.05 mm)
Sealing System	Multi-lip composite seals (wiper + primary seal, e.g., PU/FKM)
Action Type	Double-acting
Construction Type	Tie-rod
Typical Applications	Press machines, stamping, bending, pressing, assembly equipment
