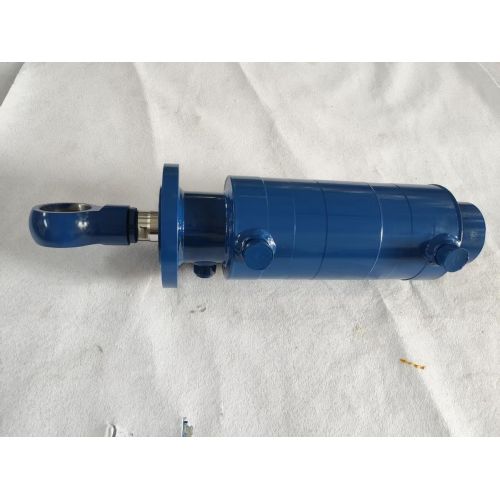

CDH Series Heavy Duty Steering Hydraulic Cylinder

CDH Series Heavy Duty Steering Hydraulic Cylinder

Name: CDH1 MF3 80 45-280 Hydraulic Cylinder
Uploaded: 2026-01-05T11:47:39+08:00
Description: Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic

Get Latest Price

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW,DDP

Contact Now

Product Description

Product Attributes

Model No.: 80 45-280

Brand: Guoyue

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Indonesia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Video Technical Support, Online Support

Support Customization: Oem, Odm

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

CDH1 MF3 80 45-280 Hydraulic Cylinder



Product Description

Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder

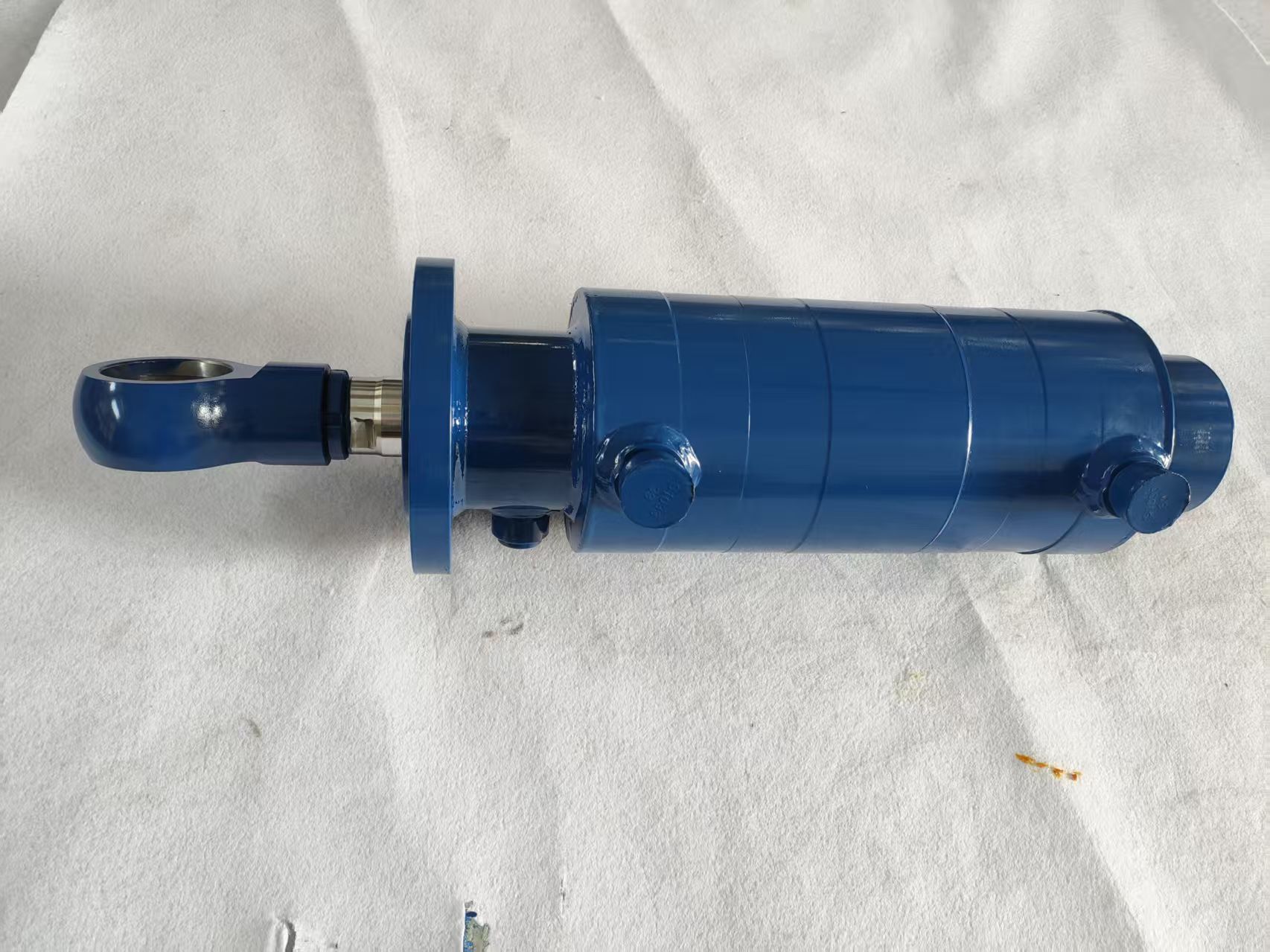

CDH1MF3/80/45/280D1X/B1CHUMWW is a CDH series heavy-duty steering Hydraulic Cylinder, which belongs to the industrial grade Hydraulic Actuator. It is designed for high load and high-strength working conditions and is widely used in engineering machinery, agricultural machinery, special vehicles and other scenarios that require reliable steering control.

Size:

Cylinder diameter 80mm, rod diameter 45mm,Stroke length is 280 mm

Heavy duty structure: using high-strength alloy steel cylinder tube and quenched chrome plated piston rod, resistant to bending and impact.

High sealing performance: Multi channel sealing design (such as U-shaped ring+retaining ring+dust ring), suitable for harsh environments such as dust, mud and water.

High working pressure: Typically rated pressure of 21-35 MPa (approximately 3000-5000 PSI), with high output thrust.

Long life design: guide sleeve and wear-resistant ring reduce eccentric wear and extend service life.

OEM/ODM support: Installation dimensions, travel, interfaces, etc. can be customized according to customer equipment requirements.
