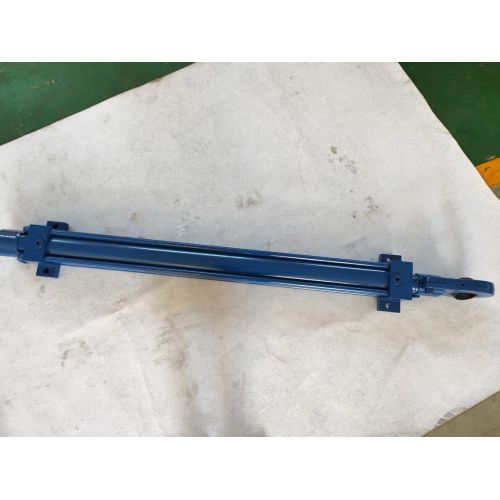

Rod Type Differential Hydraulic Cylinder

Rod Type Differential Hydraulic Cylinder

Name: 80 56-1000 custom large hydraulic cylinder
Uploaded: 2025-12-22T11:23:27+08:00
Description: Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic

$500-800 /Piece/Pieces

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW,DDP
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air

Contact Now

Product Description

Product Attributes

Model No.: 80 56-1000

Brand: Guoyue

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Indonesia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Online Support, Video Technical Support

Support Customization: Oem, Odm

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

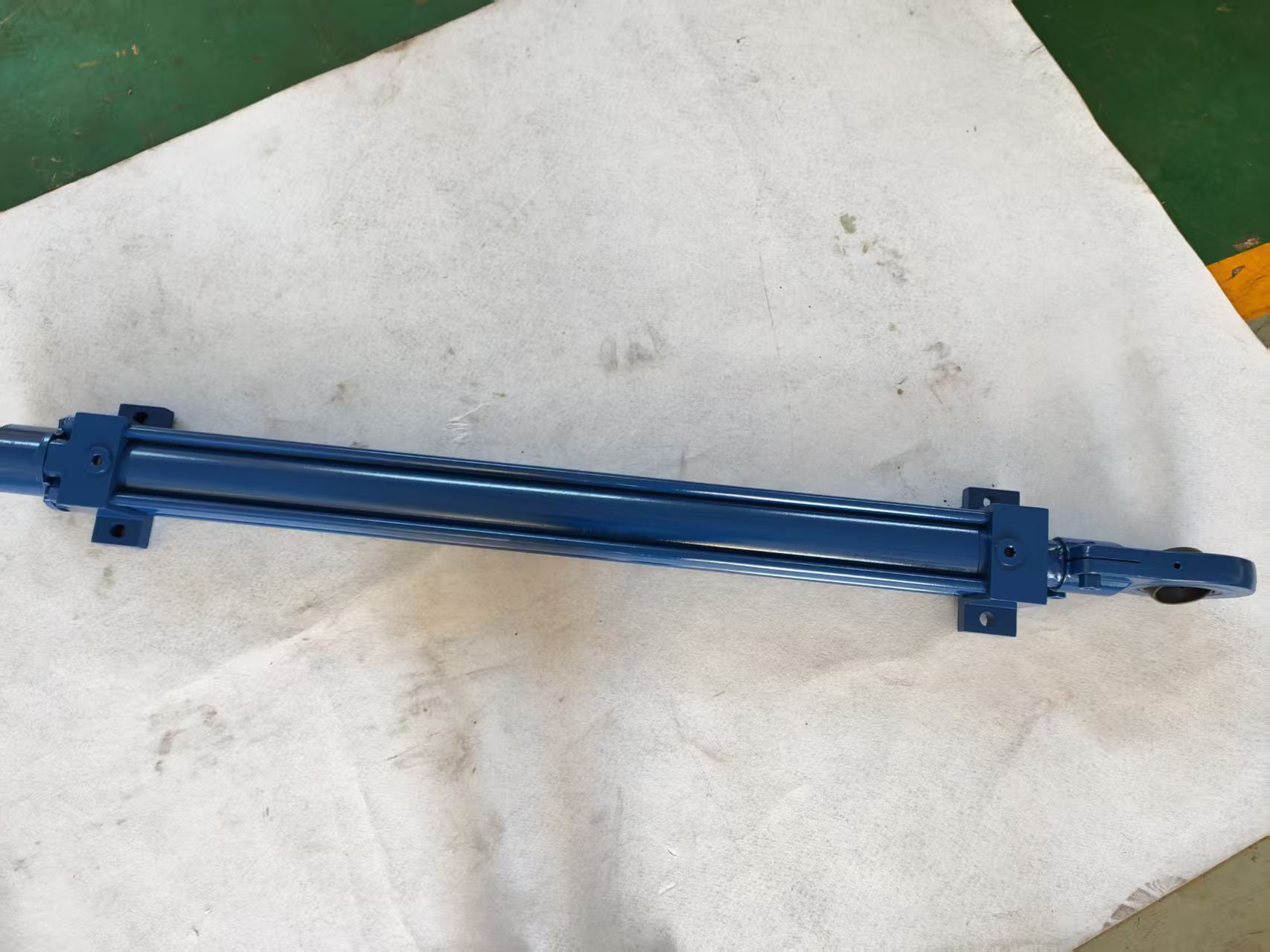

80 56-1000 custom large hydraulic cylinder



Product Description

Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder

一、Product Parameters

Bore Diameter: 80 mm

Rod Diameter: 56 mm

Stroke: 1000 mm

Installation method/accessories: A1X (standard installation interface)

Sealing system: B1 (high-performance seal, suitable for medium and high pressure working conditions)

Special identification: surface treatment chrome plated rod, buffer, magnetic switch slot and other customized options

二、 Main advantages and characteristics

1. Differential design to improve efficiency

Differential Circuit can utilize the return oil from the rod chamber to enter the rodless chamber during extension, achieving rapid extension and improving work efficiency. It is particularly suitable for situations that require high-speed idle travel, such as press fit and clamping equipment.

2. High reliability and long lifespan

Adopting high-strength alloy steel cylinder barrel and precision grinding+hard chrome plated piston rod, it is wear-resistant, corrosion-resistant, and has strong resistance to eccentric load.

Equipped with high-performance sealing systems, suitable for medium and high pressure systems of 16-25 MPa, with low leakage rate and long service life.
