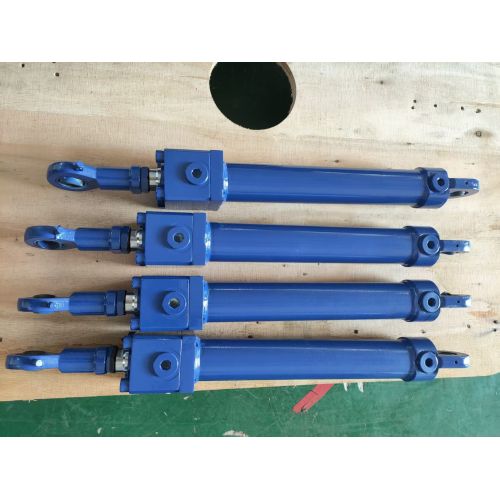

CDH1 MP5 Heavy Duty Hydraulic Cylinder

Name: 50 36-295 Metallurgical Hydraulic Cylinder
Uploaded: 2025-12-16T14:10:26+08:00
Description: Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic

$500-800 /Piece/Pieces

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,EXW,CIF,DDP
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air

Contact Now

Product Description

Product Attributes

Model No.: 50 36-295

Brand: Guoyue

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Indonesia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Online Support, Video Technical Support

Support Customization: Oem, Odm

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

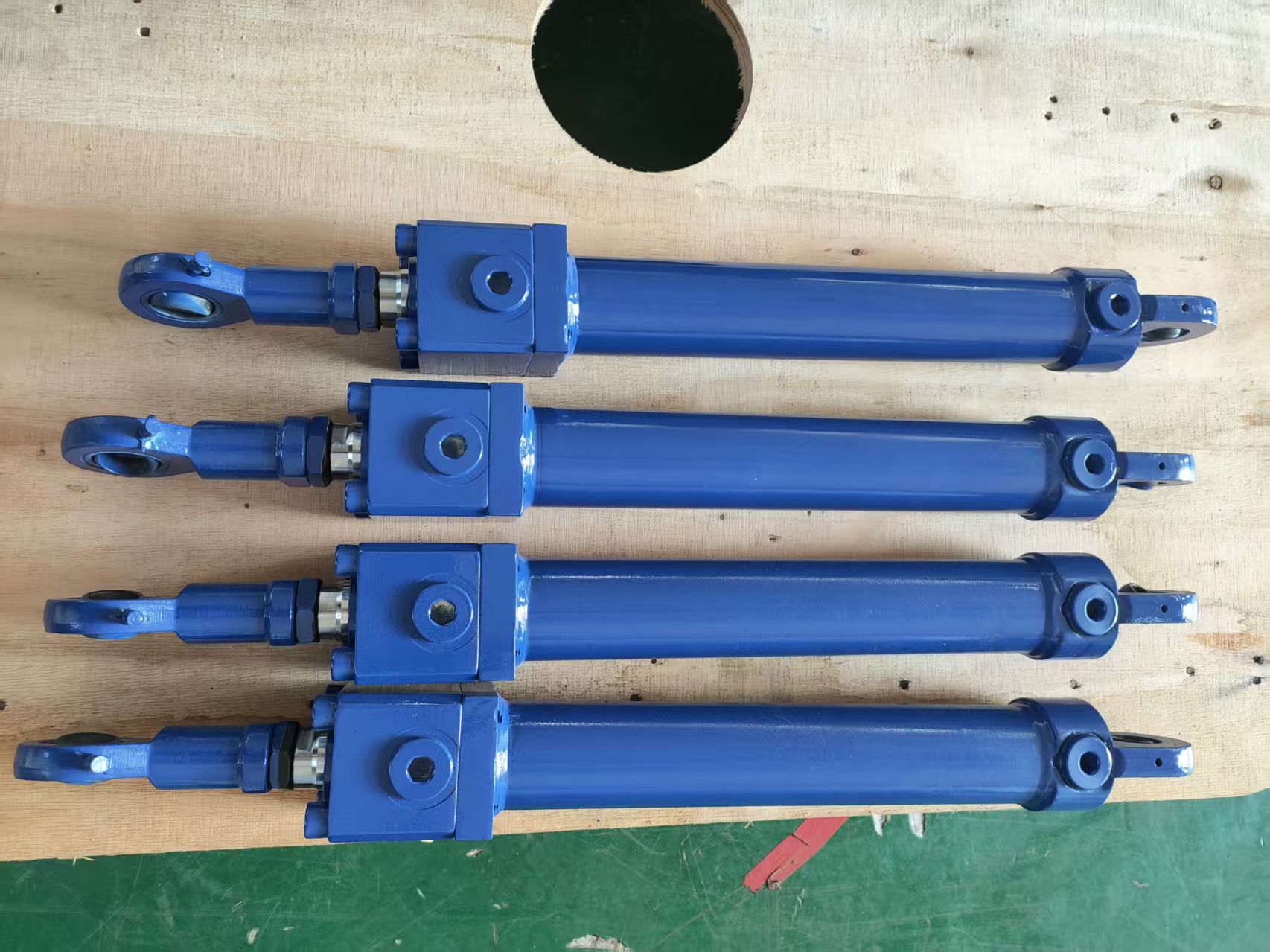

50 36-295 Metallurgical Hydraulic Cylinder



Product Description

Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder

Feature	Description
Construction Type	Welded heavy-duty cylinder (not tie-rod type); high structural rigidity and excellent resistance to bending moments.
Operating Pressure	Typically rated at 21–35 MPa (some models up to 40 MPa), suitable for high-pressure hydraulic systems.
Bore Diameter Range	Commonly from Φ100 mm to Φ630 mm, capable of generating thrust forces in the hundreds of tons.
Stroke Length	Can exceed 2000 mm, accommodating long-stroke heavy-duty applications.
Mounting Style	MP5 typically denotes a rectangular flange foot mount (front or rear), enabling rigid and stable installation.
Sealing System	Equipped with multi-stage sealing arrangements (e.g., Step seal + Glyd ring + wiper), offering high contamination resistance and long service life.
Surface Treatment	Piston rod usually features medium-frequency induction hardening + hard chrome plating + precision polishing for superior wear and corrosion resistance; cylinder bore is honed to high precision.
