Model No.: 280 100-230
Brand: Guoyue
Origin: China
Warranty Period: 1.5 Years
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Service System: Online Support, Video Technical Support
Maximum Stroke: Other
Inner Tube Diameter: 280mm
Support Customization: Oem, Odm
The file is encrypted. Please fill in the following information to continue accessing it

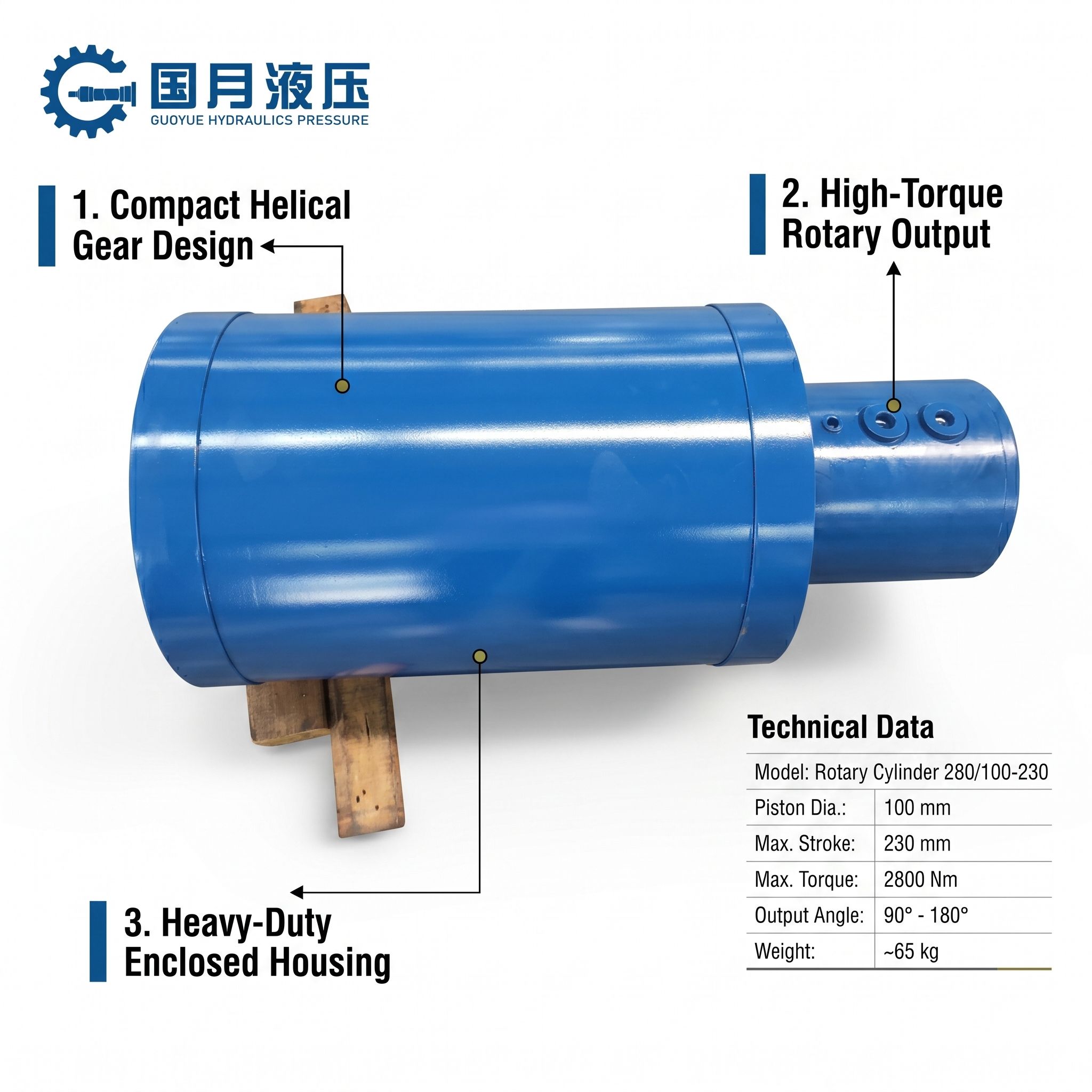

Specification: Helical Rotary Actuator / Rotary Cylinder / 280-100 Series / High Torque Actuator / Compact Industrial Rotation
Linear reciprocating telescopic oil cylinder,Rotary swing telescopic oil cylinder,Sleeve type telescopic oil cylinder
Helical Design: Utilizes a precision-engineered helical gear set to convert linear piston force into high-torque rotation, ensuring maximum power density in a compact footprint.
Torque Capacity: Optimized for heavy-duty load-bearing and rotational applications.
Operating Pressure: Nominal pressure 21 MPa (210 Bar); Maximum static test pressure 31.5 MPa.
Structure: Fully enclosed, rugged housing prevents external contamination and withstands extreme shock loads.
Zero Leakage Performance: Equipped with high-performance multi-lip industrial seals to ensure smooth operation and pressure retention over long service cycles.
Precision Control: Features minimal backlash and high positioning accuracy, ideal for precision steering and tilt mechanisms.
Material Strength: Components are manufactured from high-tensile alloy steel with induction-hardened gear surfaces for superior wear resistance.
Application: Ideal for aerial work platform basket rotation, utility vehicle garbage bin lifting, excavator attachment tilting, and heavy-duty drilling rig positioning.| Item | Specifications |
| Model | Rotary Cylinder 280/100-230 |
| Type | Helical Rotary Actuator |
| Bore Size | 280 mm |
| Rod/Shaft Size | 100 mm |
| Rotation Angle | Up to 180° / 360° (Customizable) |
| Rated Pressure | 21 MPa (210 Bar) |
| Max Pressure | 31.5 MPa |
| Housing Material | High-Tensile Alloy Steel |
| Seal Type | NBR/Viton Multi-lip System |
| Operating Temp | -20°C to +80°C |
