Custom Double Acting Hydraulic Cylinder

Name: CDH1 MF3 80 45-1040 Hydraulic Cylinder
Uploaded: 2026-03-22T03:12:02+08:00
Description: Linear reciprocating telescopic oil cylinder,Rotary swing telescopic oil cylinder,Sleeve type telescopic oil

Get Latest Price

Min. Order:	1
Transportation:	Ocean,Land

Contact Now

Product Description

Product Attributes

Model No.: CDH1 MF3 80-45-1040

Brand: Guoyue

Origin: China

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Kyrgyzstan

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Online Support, Video Technical Support

Maximum Stroke: 50mm

Inner Tube Diameter: 320mm

Support Customization: Oem, Odm

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

CDH1 MF3 80 45-1040 Hydraulic Cylinder



Product Description

Linear reciprocating telescopic oil cylinder,Rotary swing telescopic oil cylinder,Sleeve type telescopic oil cylinder

Double Acting Hydraulic Cylinder for Industrial Automation, Machine Tools, Engineering Machinery" data-spm-anchor-id="a2700.details.0.i36.494b4c40nPqiNp">Custom Double Acting Hydraulic Cylinder for Industrial Automation, Machine Tools, Engineering Machinery

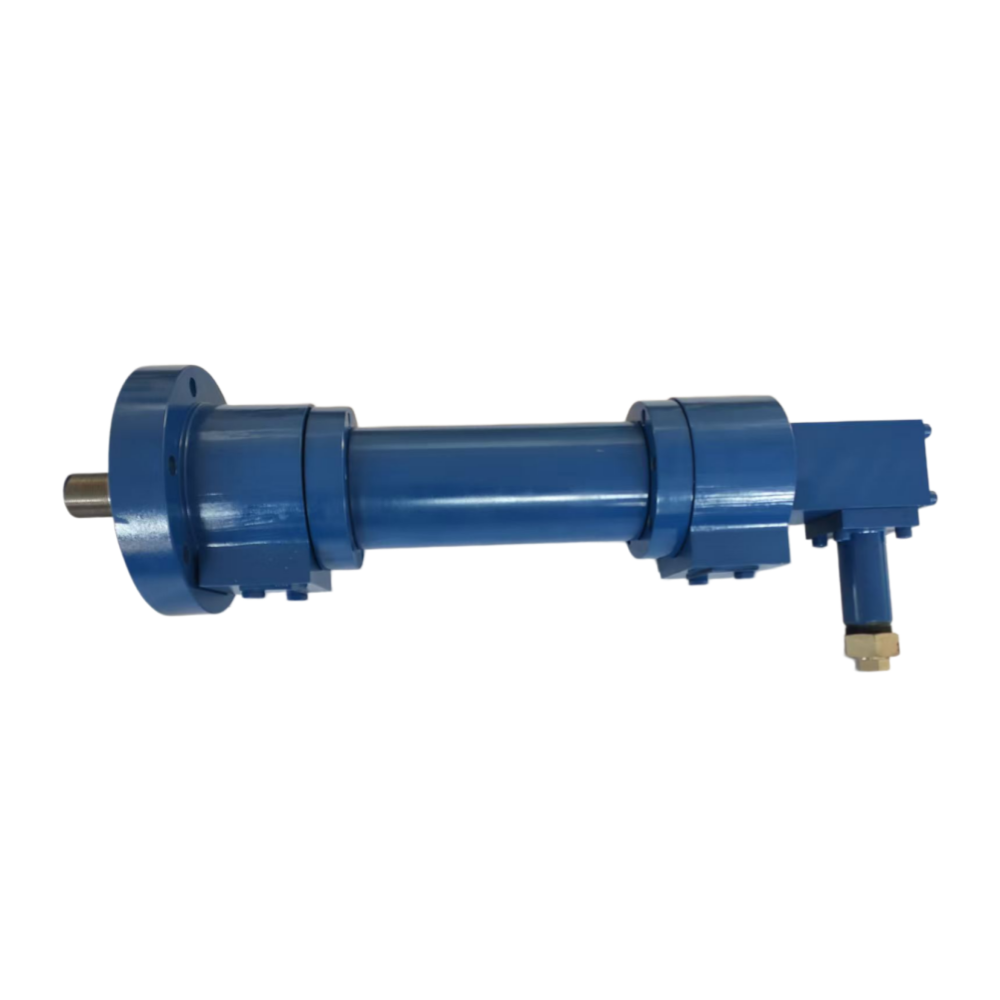

The hydraulic cylinder model CDH1 MF3 80-45-1040 denotes a double-acting, mill-type tie-rod hydraulic cylinder from the CDH1 series, engineered in compliance with Bosch Rexroth standards and DIN ISO 3320 for dimensional interchangeability and robust industrial performance; the CDH1 prefix identifies it as part of a heavy-duty series commonly deployed in rolling mills, presses, and material handling systems, with this specific unit belonging to component series 1X (covering piston diameters from 40 to 200 mm) and typically rated for a nominal operating pressure of 250 bar (25 MPa). The MF3 suffix specifies a round flange mounting configuration positioned at the cylinder head (cap end), providing enhanced rigidity and resistance to moment loads during operation. Dimensionally, the triplet 80-45-1040 defines an 80 mm piston bore diameter, a 45 mm piston rod diameter, and a 1040 mm stroke length—all measurements in millimeters—with the rod-to-bore ratio of approximately 0.56 falling within the standard engineering range of 0.5 to 0.7 to ensure adequate buckling resistance for the extended stroke, which remains feasible as the CDH1 series accommodates strokes up to 6 meters. As a single-rod cylinder, it adheres to operational best practices recommending a minimum pressure of 10 bar during no-load conditions to preserve seal integrity, and its design delivers reliable, precise linear actuation suited for demanding industrial environments requiring structural stability, long travel, and secure mounting alignment.
