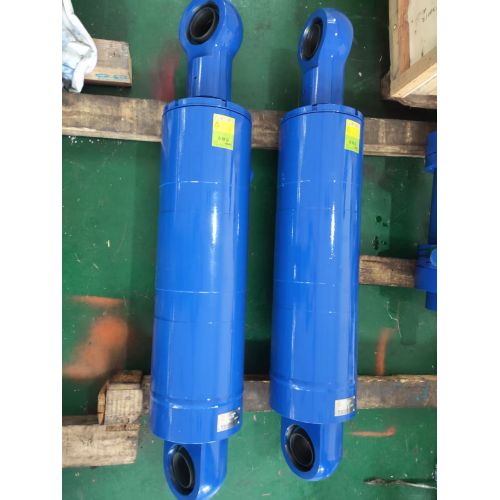

CDL1 AGC Cylinder for Heavy Duty Hydraulic Ram

CDL1 AGC Cylinder for Heavy Duty Hydraulic Ram

Name: CDL1 MF4 180 100-450 Hydraulic Cylinder
Uploaded: 2026-05-17T13:07:54+08:00
Description: Specification: CD Series Cylinder, Differential Mill Cylinder, Round Body Cylinder, Bolted Cylinder, Fast Speed

Get Latest Price

Min. Order:	1
Transportation:	Ocean,Land,Air

Contact Now

Product Description

Product Attributes

Model No.: CDL1 MF4 180 100-450

Brand: Guoyue

Origin: China

Warranty Period: 1.5 Years

Out-of-warranty Service: Video Technical Support, Online Support

Place Of Origin: China

Service System: Online Support, Video Technical Support

Maximum Stroke: Other

Inner Tube Diameter: 180mm

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

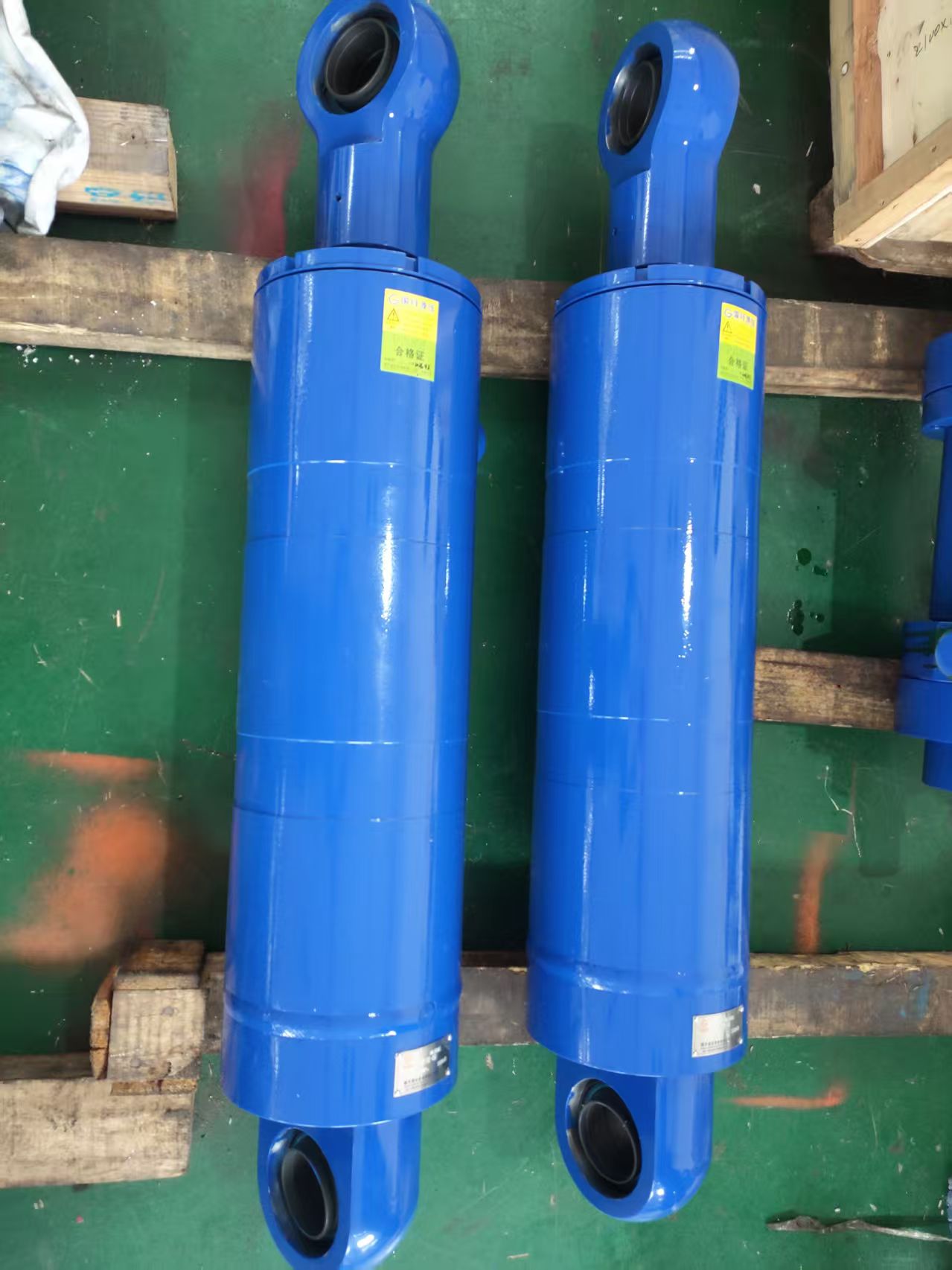

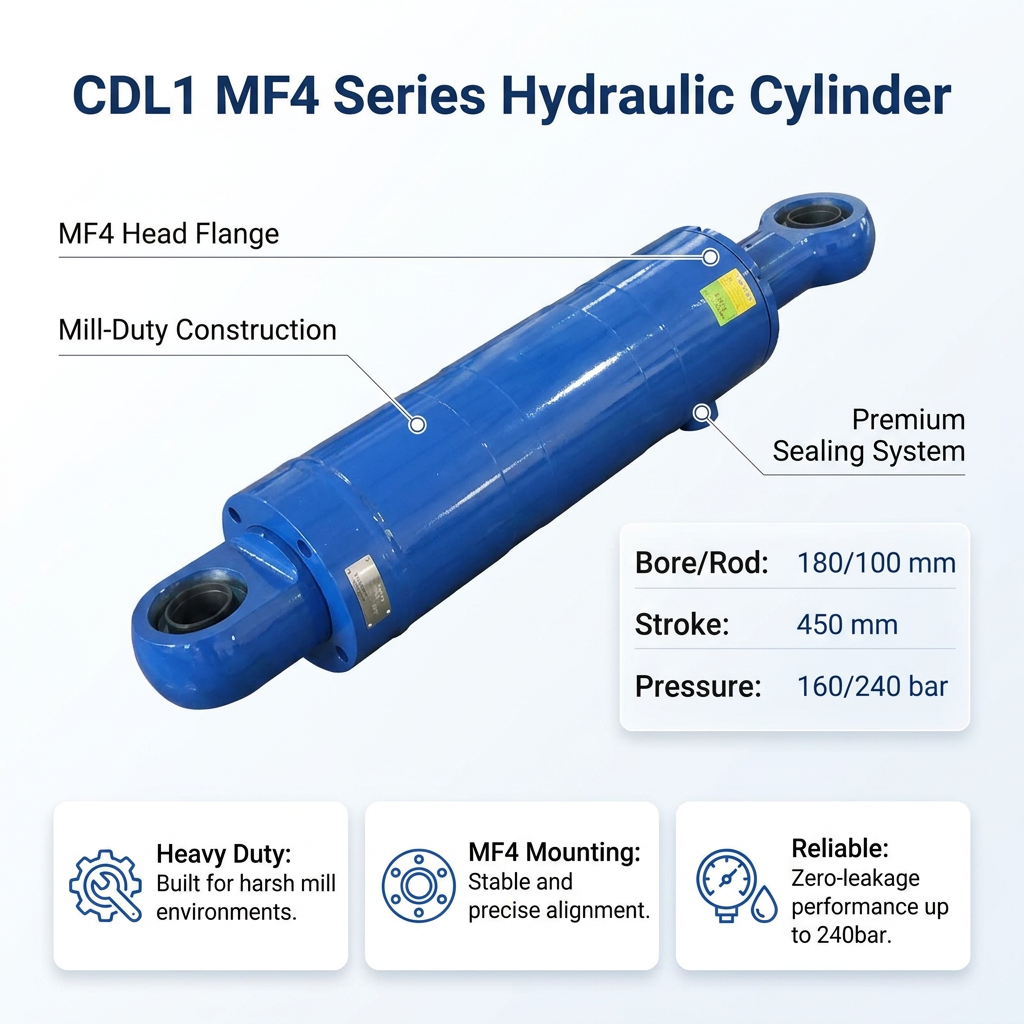

CDL1 MF4 180 100-450 Hydraulic Cylinder



Product Description

Specification: CD Series Cylinder, Differential Mill Cylinder, Round Body Cylinder, Bolted Cylinder, Fast Speed Cylinder

Manufactured in accordance with ISO 3320 and the essential technical requirements of the Rexroth CDL1 metallurgy series.
Available in bore sizes from 40mm to 320mm; this specific heavy-duty model features a 180mm bore with a 100mm rod.
In most popular industrial applications, the 160 bar (16 MPa) nominal pressure provides stable performance, with a static test pressure up to 240 bar for safety under shock loads.
Piston rods are manufactured from high-strength steel (45# or 42CrMo), precision ground, and hard chrome plated (min. 0.03mm thickness) to resist wear and corrosion.
The chrome-plated surface ensures a smooth stroke and a maximum service life of over 5,000 km without leakage in harsh environments.
Equipped with a superior sealing system (Parker or Hallite) that remains unaffected by industrial oils, grease, and high temperatures.
100% interchangeable with Rexroth dimensions, allowing for seamless replacement and significantly lower maintenance costs compared to OEM parts.
The Mill Type (round-body) non-welded structure offers maximum structural stability and allows for easy disassembly for seal replacement.
Mounting Type: MF4 (Head Flange mounting) ensures rigid and precise alignment for heavy-duty cycling.
Stroke Length: Available from 50mm up to 3000mm; this model is optimized with a 450mm stroke

Attribute	Technical Specification
Product Model	CDL1 MF4 180/100-450
Series Type	Mill Type Heavy Duty Hydraulic Cylinder
Technical Standard	ISO 3320 / Bosch Rexroth CDL1 Compatible
