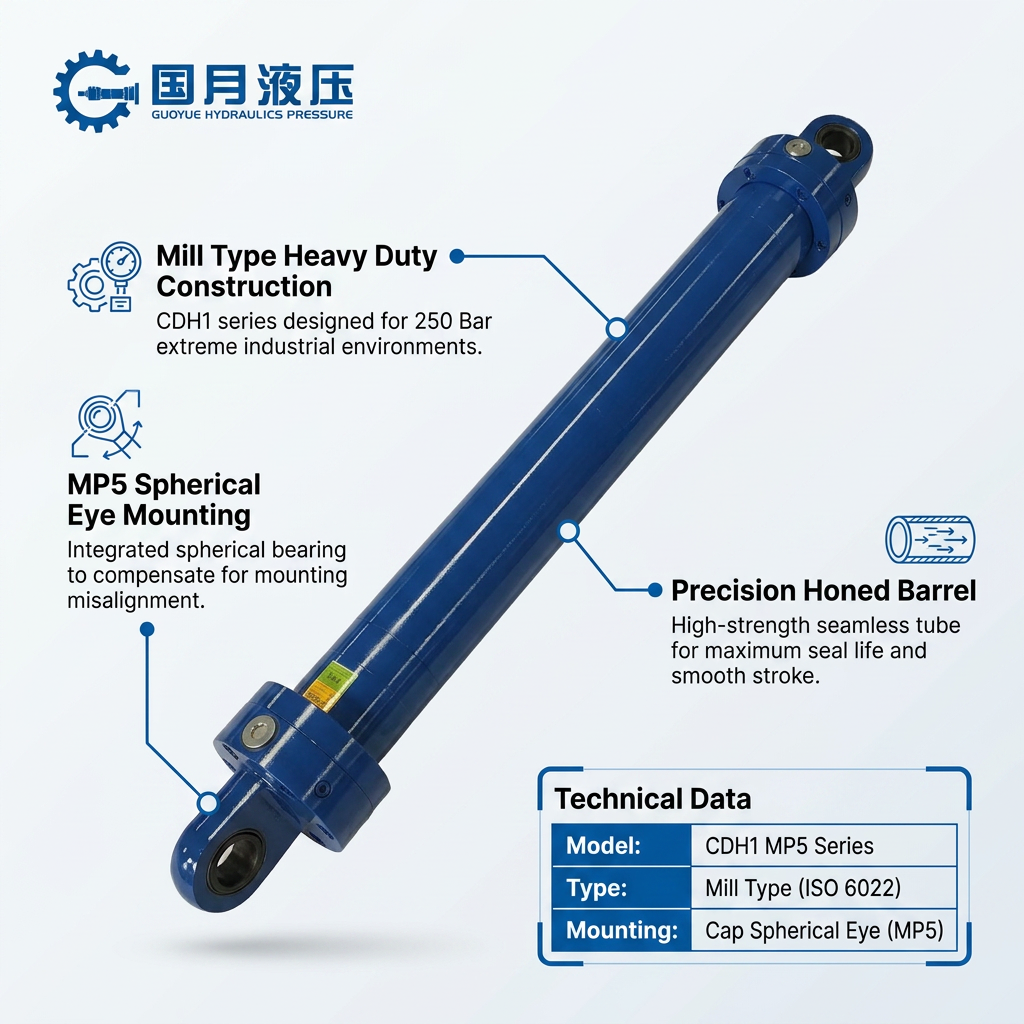

Mill Type Heavy-duty Cylinder

Specification:CD Series Cylinder, Differential Mill Cylinder, Round Body Cylinder, Bolted Cylinder, Fast Speed Cylinder

• Manufactured to ISO 6022 / DIN 24333 standards for 250 Bar extreme metallurgical environments.
• Equipped with MP5 spherical bearing eye at the cap end, providing self-alignment to eliminate lateral loading.
• Heavy-duty mill type construction with high-strength honed tubes for maximum structural durability.
• Piston rod features induction hardening and hard chrome plating (30-50μm) for superior wear resistance.
• Advanced high-pressure sealing system (Parker/SKF) ensuring zero-leakage during intense industrial cycles.
• 100% mechanically interchangeable with Rexroth CDH1 series, suitable for direct power plant equipment upgrades.
• Perfect for hydropower gates, metallurgical ladle controls, and heavy mining infrastructure.

Attribute	Specification
Model	CDH1 MP5 Series
Series Type	Mill Type Heavy-Duty
Nominal Pressure	MP5 Cap Spherical Eye
Standard	ISO 6022 / DIN 24333
Mounting	MP5 Cap Spherical Eye
Bearing Type	Self-aligning Spherical Bearing
Interchange	100% Rexroth Compatiblel Bearing
