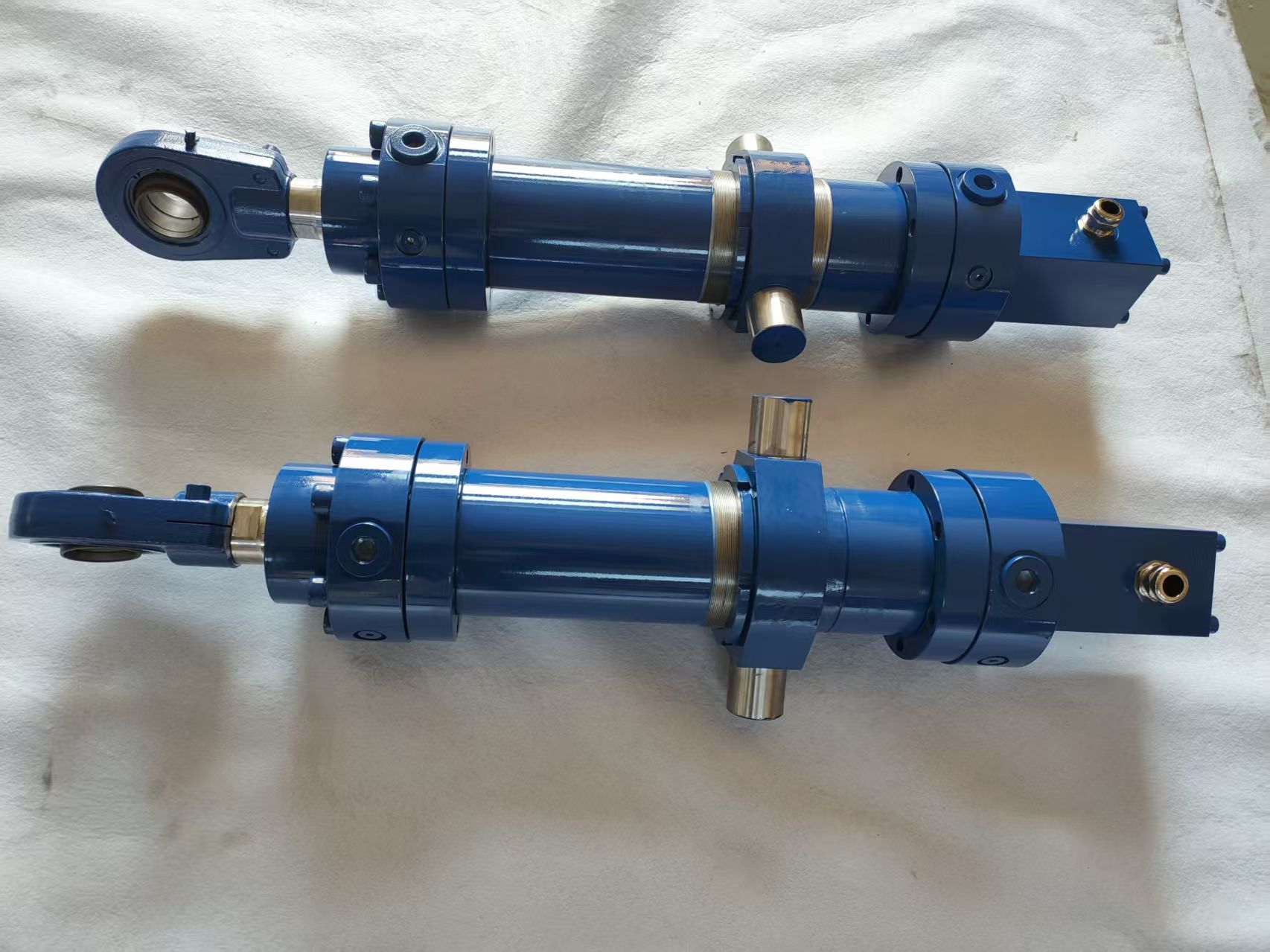

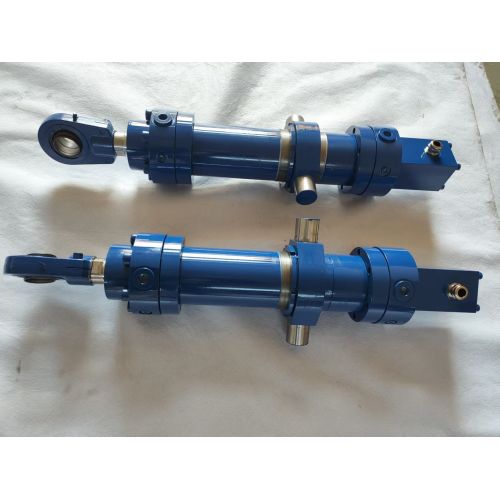

CDH1 Heavy-duty Hydraulic Cylinder

Name: 100 56-330 Metallurgical hydraulic cylinder
Uploaded: 2025-12-12T12:13:46+08:00
Description: Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic

$500-800 /Piece/Pieces

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW,DDP
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express

Contact Now

Product Description

Product Attributes

Model No.: 100 56-330

Brand: Guoyue

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

100 56-330 Metallurgical hydraulic cylinder



Product Description

Hydraulic Cylinder for Metallurgical,Metallurgical Equipment Hydraulic Cylinder,Metallurgical Hydraulic Cylinder

Standard: Main dimensions such as piston and piston rod diameter comply with DIN 24333 and IS0 6022

Rated pressure: 250 bar

Static inspection pressure: Please inquire about working pressures higher than 375 bar.

The given work pressure is applicable to non impact working conditions. In special loads, such as high working cycle numbers, it is necessary to perform strength checks on the installation components and threads on the piston rod.

Installation location: Any

Pressure Liquid/Pressure Liquid Temperature Range: HL, HLP, HFD-R: -20'C to+80 ° CHFA:+5 ° C to+55 ° C Water Ethylene Glycol HFC Please inquire

Viscosity range: 2.8 to 380 mm2/s

Cleanliness level according to ISO

The maximum allowable contamination level of pressure fluid is in accordance with ISO 4406 (c) grade 20/18/15

Operating speed: up to 0.5 m/s/s (depending on the oil port), please inquire for higher operating speeds.
