Large hydraulic cylinders are the actuating components in hydraulic transmission systems, which drive the piston rod to perform linear reciprocating motion through the pressure of hydraulic oil, converting hydraulic pressure energy into mechanical energy. Its "large" usually refers to a cylinder with a large diameter (often exceeding 200mm), a long stroke (up to several meters or even more than ten meters), and strong bearing capacity (thrust can reach thousands of tons), designed specifically for high load and high reliability working conditions.
二、 Core application scenarios
1. Metallurgical industry: a reliable partner under high temperature and heavy load

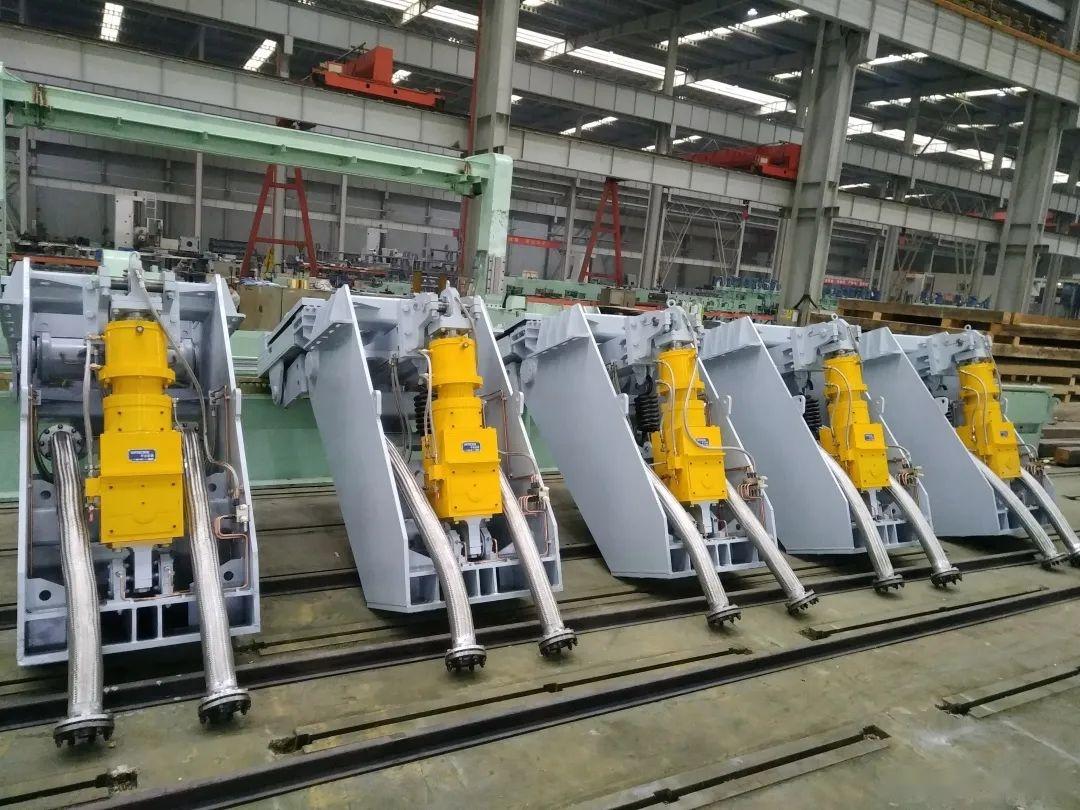

In steel plants, large hydraulic cylinders are widely used in the pressing system of rolling mills, the top material distribution device of blast furnaces, the ingot pushing rod of continuous casting machines, and the ladle lifting mechanism. Faced with high temperature radiation of 1500 ℃ and continuous impact loads, they can still stably output hundreds of tons of thrust, ensuring continuous and efficient production.
2. Mining and Heavy Mining: Conquering Extreme Environments

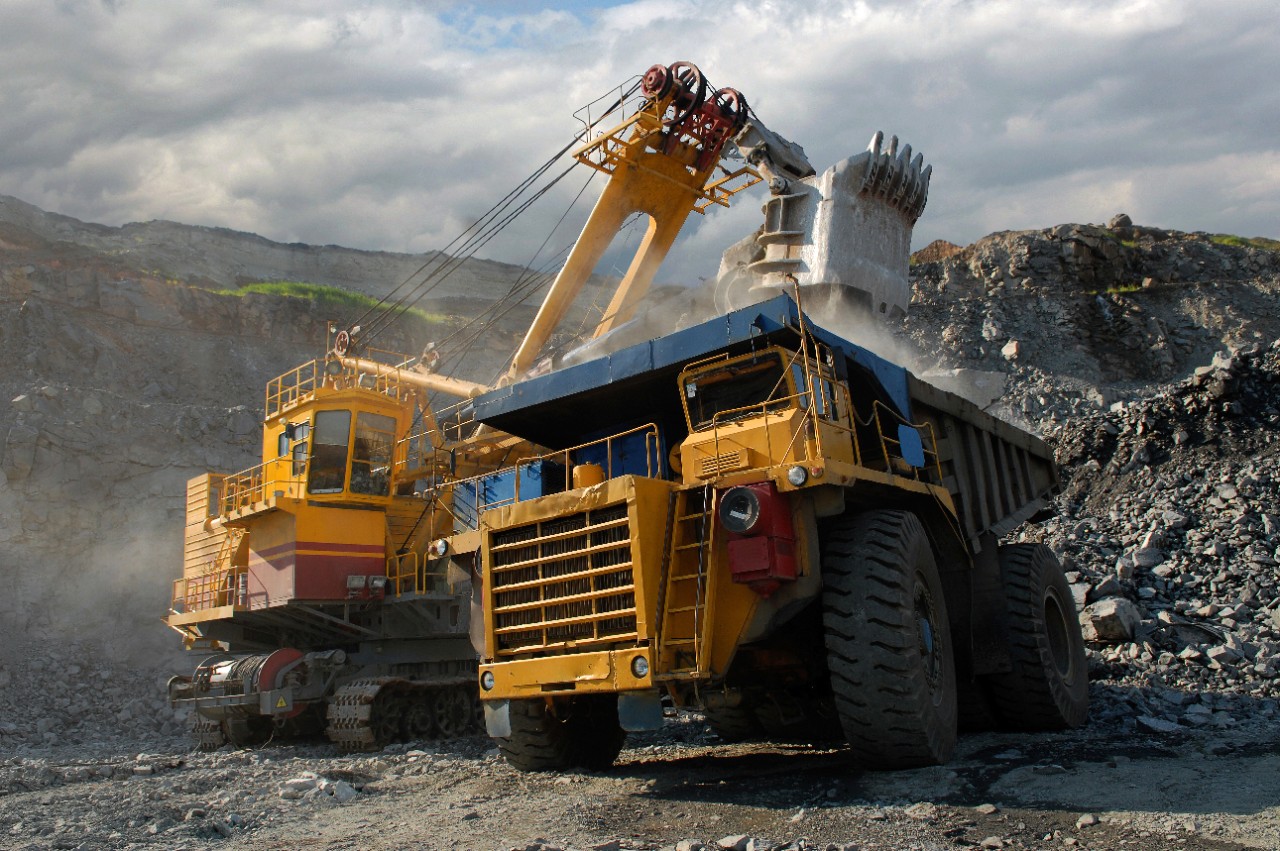

The lifting cylinder of the mining dump truck can smoothly lift the hundred ton carriage; The rock drilling rig relies on the propulsion cylinder to forcefully press the drill bit into the rock formation; The hydraulic support system in the crushing station ensures the stable operation of the equipment in vibration and dust. These oil cylinders must be wear-resistant, pollution resistant, and adaptable to harsh outdoor conditions.
3. Ship and Ocean Engineering: The Sea Needle in Deep Blue

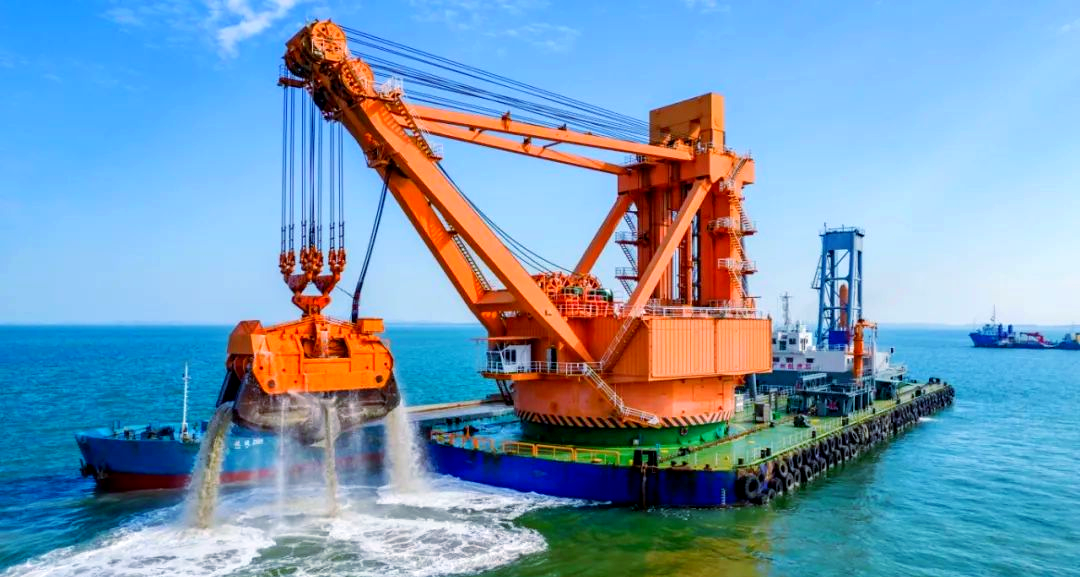

On a ten thousand ton ship, large oil cylinders drive the opening and closing of the hatch cover to ensure the sealing of the cargo hold; Offshore oil platforms use multiple sets of synchronous oil cylinders to achieve pile leg lifting and leveling, which can maintain platform stability even in wind and waves; The emergency shutdown system of deep-sea blowout preventers (BOP) relies more on high-pressure oil cylinders to complete safety locking within milliseconds.
4. Electric energy: guarding the lifeline of energy

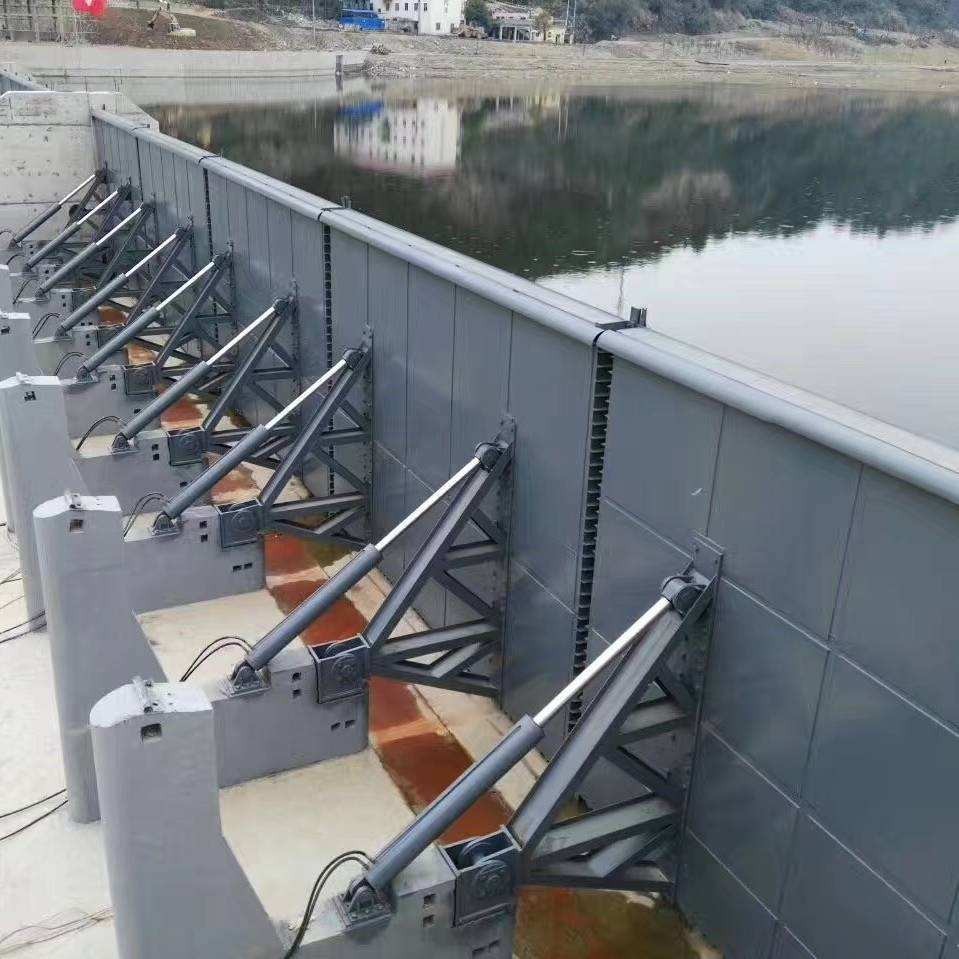

The arc-shaped gate of the hydropower station is controlled by a giant oil cylinder to open and close, regulating water flow and generating electricity; The ball valve opening and closing system of pumped storage power stations needs to operate accurately under high pressure water head; The safety isolation doors of nuclear power plants also adopt redundant hydraulic drives to ensure rapid response in extreme situations.
5. Heavy manufacturing equipment: shaping everything with the power of ten thousand tons

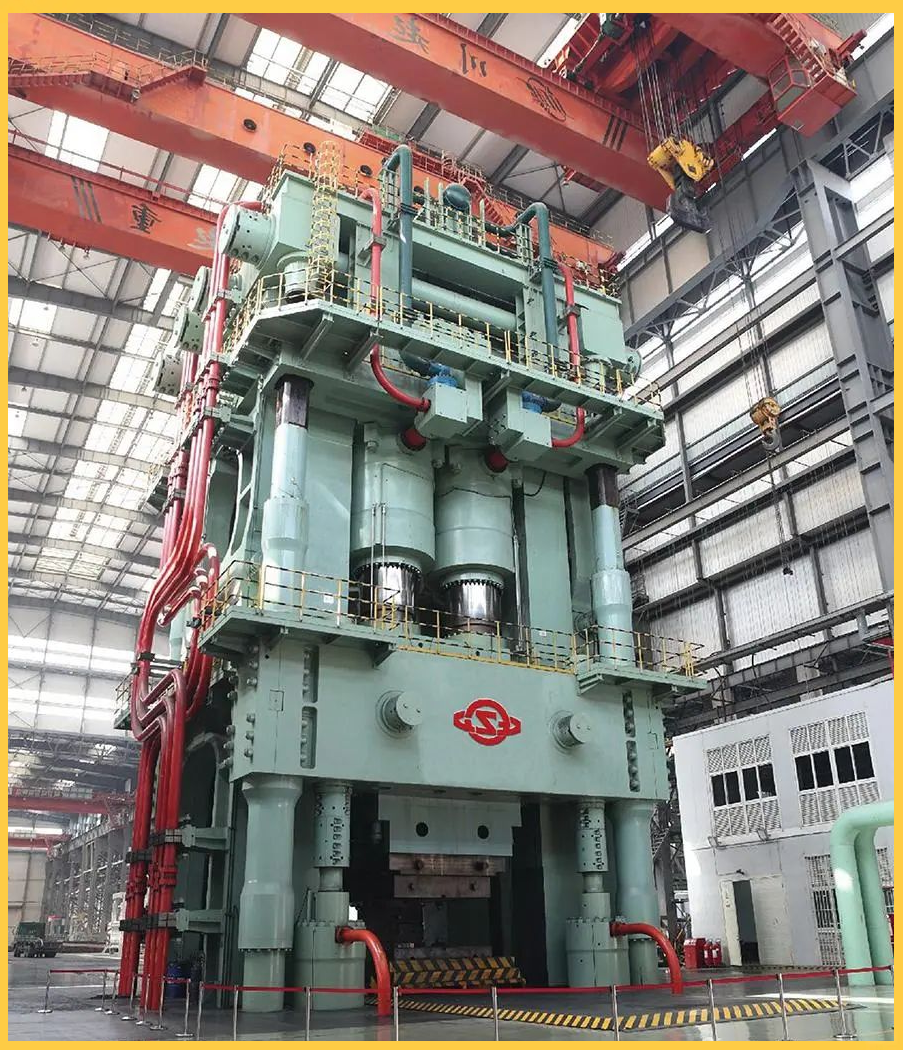

High end equipment such as 10000 ton free forging hydraulic presses, large metal extruders, and composite material hot press tanks all rely on multi cylinder synchronous control systems to apply uniform high pressure, achieving precision forming of materials such as metals and carbon fibers. At this point, the oil cylinder is not only a power source, but also a guarantee of process accuracy.
6. Aerospace and Defense: The Behind the Scenes Drivers of National Heavy Industries

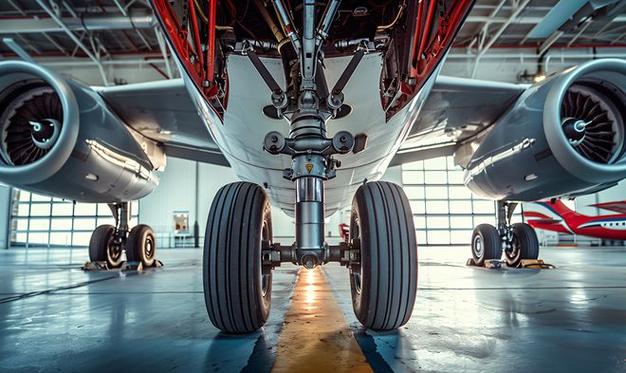

In the military industry, large hydraulic cylinders are used for pitch and azimuth adjustment of missile launchers, deployment and locking of radar antenna arrays, and loading simulation of aircraft landing gear ground test benches. Its high responsiveness and reliability are directly related to equipment performance and mission success or failure.
三、 Technological Trends and Future Directions
With the upgrading of industrial intelligence, large hydraulic cylinders are developing towards high integration, digitization, and greening:
Intelligent sensor integration: built-in displacement, pressure, and temperature sensors for real-time monitoring of status;
Electro hydraulic fusion control: combined with servo system to improve response speed and positioning accuracy;
Lightweight and energy-saving design: using high-strength alloys, optimizing sealing structures, reducing energy consumption and maintenance costs;
Digital twin application: Predicting lifespan and optimizing maintenance cycles through virtual models.
