Heavy duty hydraulic cylinder: the core power execution component in the industrial heavy-duty field

In high load industrial scenarios such as steel metallurgy, heavy machinery, mining equipment, and shipbuilding, there is a "silent strongman" who always silently undertakes key tasks - it is the Heavy Duty Hydraulic Cylinder. As the most direct executing component in hydraulic systems, heavy-duty hydraulic cylinders efficiently convert hydraulic energy into linear thrust or tension, driving precise operation of equipment weighing tens of thousands of tons. They are essential core components in modern heavy industry.

一、 What is a heavy-duty Hydraulic Cylinder?
Heavy duty hydraulic cylinders are hydraulic actuators designed specifically for high pressure, long stroke, heavy load, and harsh environments. Compared with ordinary industrial oil cylinders, it has significantly improved structural strength, sealing performance, material technology, and protection level. The typical working pressure can reach 25-35 MPa, with some special models even exceeding 40 MPa, and the thrust can reach hundreds of kilonewtons or even trillions of newtons.

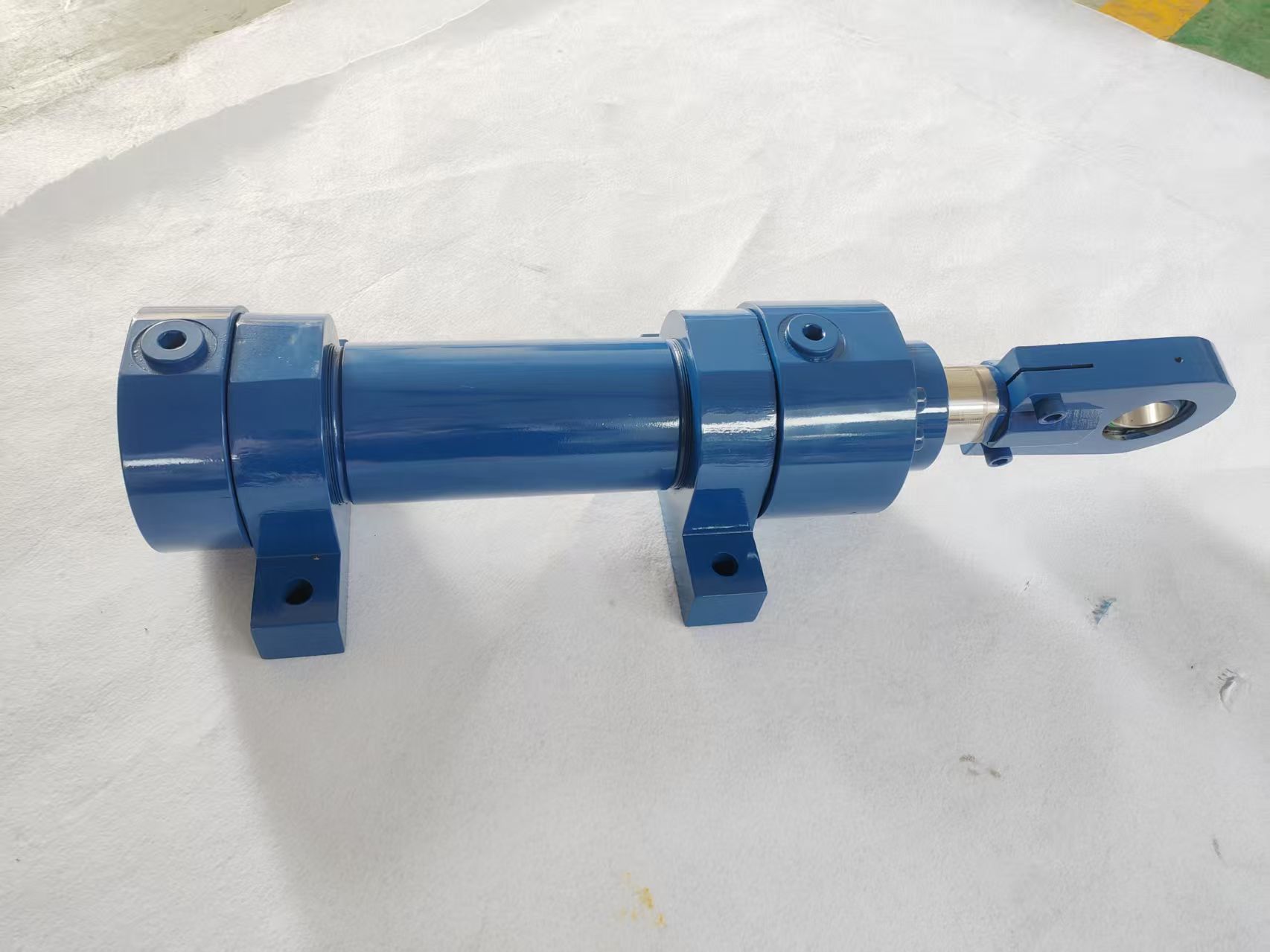

Represented by Bosch Rexroth CDH1 series and Parker Metallurgy series, heavy-duty oil cylinders widely use high-strength alloy steel cylinder barrels, medium frequency quenching+hard chrome plated piston rods, multi-layer composite sealing systems, and enhanced guiding structures to ensure long-term reliable operation under extreme conditions such as high temperature, dust, water vapor, and impact.

二、 Core advantage: Why heavy industry cannot do without it?
1. Super strong load-bearing capacity and high reliability
Heavy duty oil cylinders are manufactured using integral forging or seamless thick walled steel pipes, with a blast resistance pressure typically 3-4 times the working pressure. The internal buffering design effectively absorbs the impact at the end of the stroke, protects the equipment structure, and greatly extends its service life.
2. Adapt to extreme working conditions
High temperature resistance: The sealing system can withstand ambient temperatures ranging from 120 ° C to 180 ° C (such as near continuous casting machines);
Dustproof and Waterproof: IP65 or above protection level, dual dust scraping rings block the intrusion of oxide scale and slag;
Corrosion resistance: The surface hardness of the piston rod reaches HV800 or above, and it can withstand corrosive media such as moisture and acid mist.
3. Intelligent integration capability
Modern heavy-duty oil cylinders generally reserve sensor installation slots (such as the "U" mark), support the integration of magnetostrictive displacement sensors, achieve millimeter level position feedback, meet the requirements of intelligent manufacturing for closed-loop control, and help steel plants, rolling mills, etc. achieve automation and digital upgrades.
4. Modularization and Standardization
Mainstream brands follow international standards such as ISO and DIN, with highly unified installation interfaces, oil port positions, and connection methods, making it easy for equipment maintenance, replacement, and system integration, and reducing full lifecycle costs.

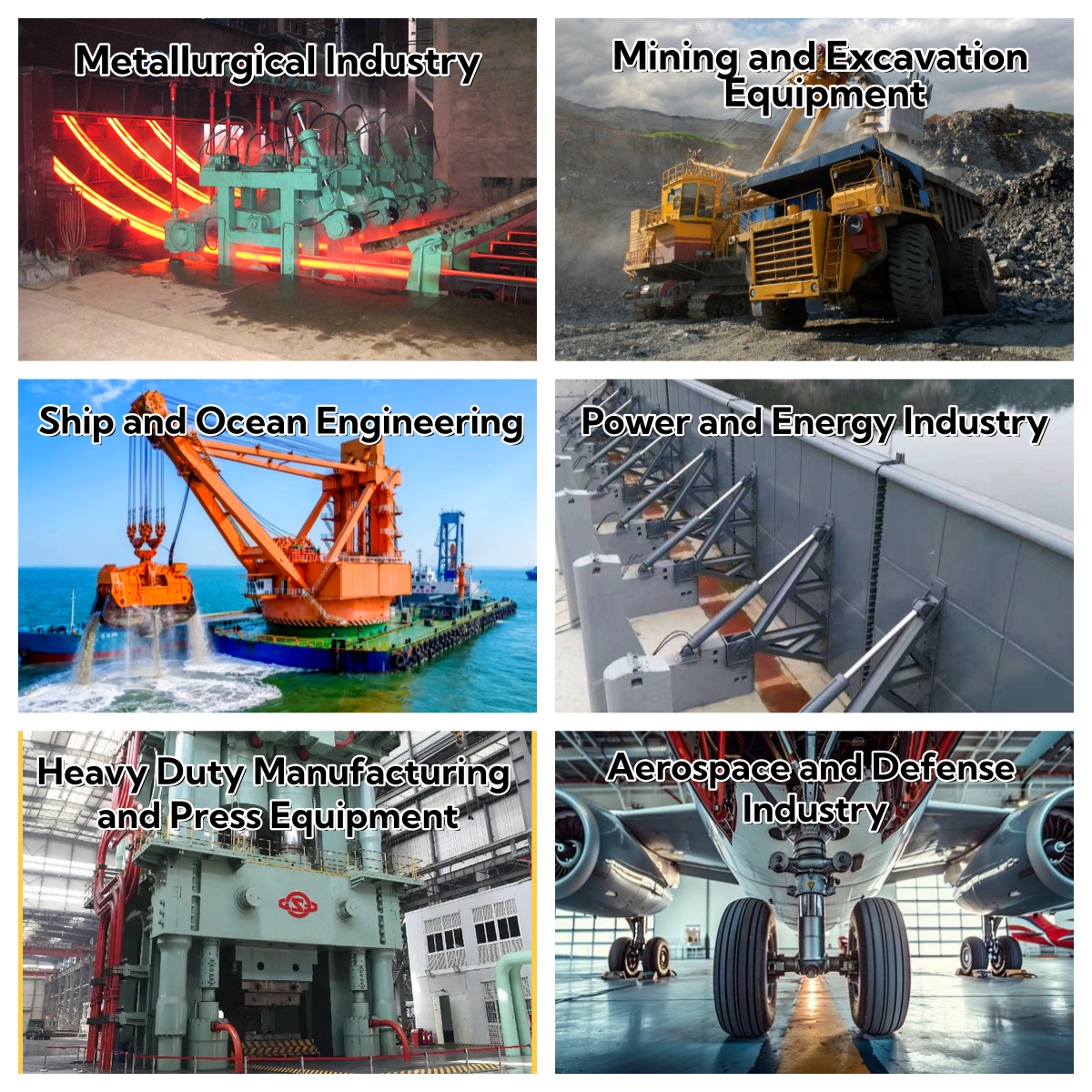

三、 Typical application scenarios

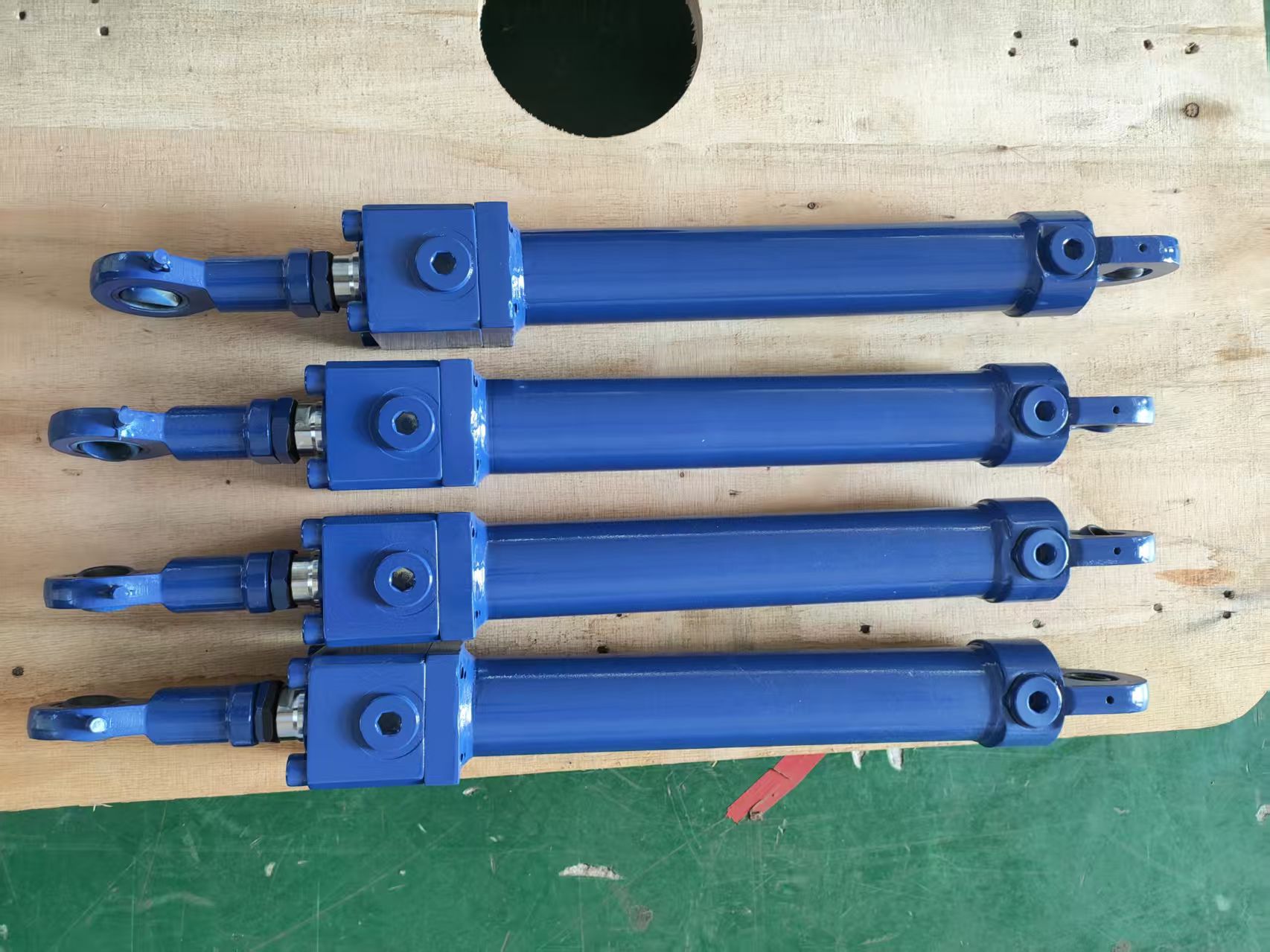

Metallurgical industry: continuous casting machine crystallizer vibration, rolling mill pressing device, ladle tilting mechanism;
Mining machinery: hydraulic support, crusher adjustment, tunneling machine propulsion;
Construction machinery: large excavator boom, crane support legs;
Ships and marine engineering: servos, hatch opening and closing, platform lifting and lowering;
Energy equipment: hydroelectric gate control, wind power variable pitch system.
In these scenarios, heavy-duty hydraulic cylinders are not only the "drivers", but also the guarantors of accuracy, safety, and efficiency.

四、 Selection and maintenance suggestions
The correct selection is the key to maximizing the performance of heavy-duty oil cylinders:
Calculate the required cylinder diameter and rod diameter based on the load;
Select sealing materials and protection levels according to the environment (such as FKM high temperature resistance, PTFE low friction);
High frequency or high-precision applications require consideration of built-in sensors and buffer design;
Ensure the cleanliness of hydraulic oil (NAS ≤ level 7) and regularly check the surface and sealing status of the rod.
Good maintenance can extend the lifespan of heavy-duty oil cylinders by 2-3 times and significantly reduce unplanned shutdowns.
