Model No.: CDH1 MP5 160-80-900
Brand: Guoyue
Origin: China
Warranty Period: 1.5 Years
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Service System: Online Support, Video Technical Support
Maximum Stroke: Other
Inner Tube Diameter: 160mm
Support Customization: Oem, Odm
The file is encrypted. Please fill in the following information to continue accessing it

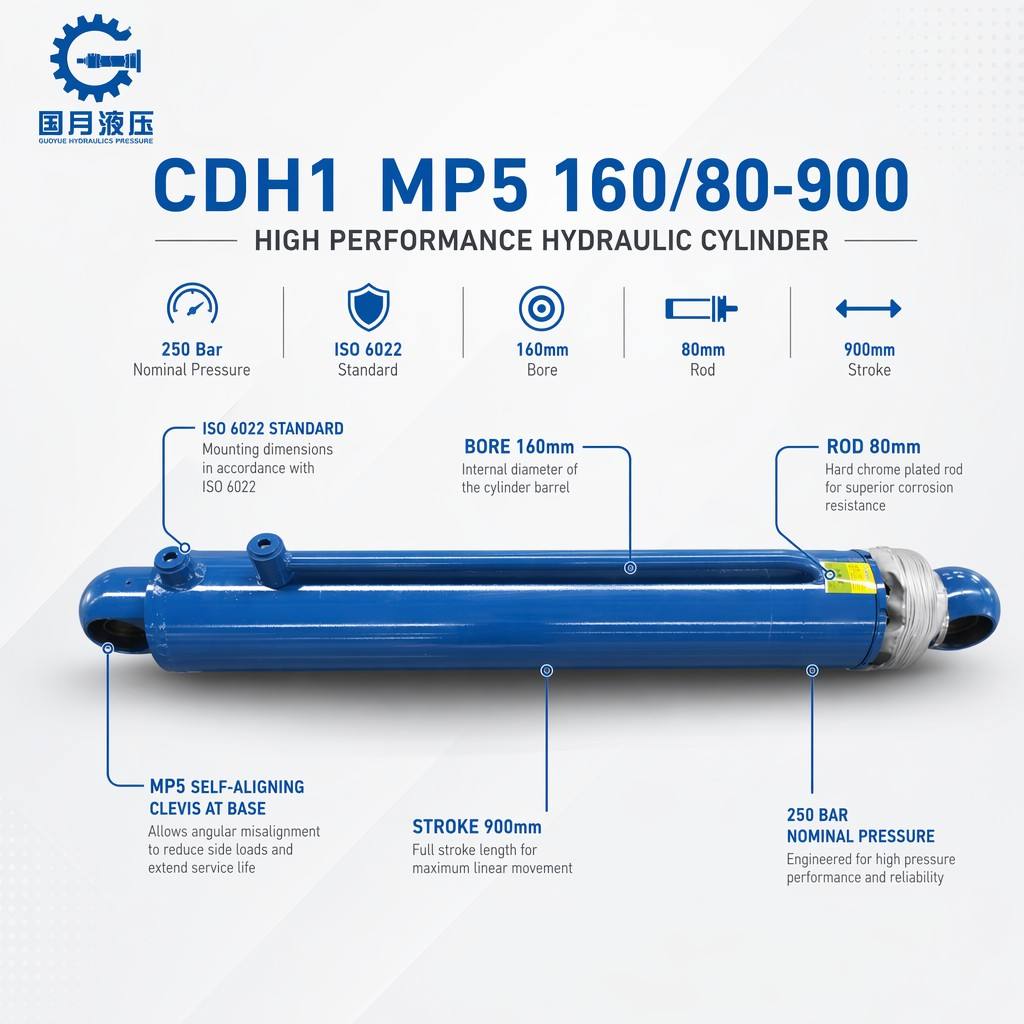

Specification: CDH1 MP5, 160mm Bore, 80mm Rod, 900mm Stroke, Self-aligning Clevis Mount, Double Acting Engineering Hydraulic Cylinder
Telescopic Hydraulic Cylinder,Multi Section Hydraulic Cylinders,Multi Stage Hydraulic Cylinder
CNC-machined cylinder head and piston, dimensional accuracy IT7, ensuring smooth stroke response across the full 900mm travel.
Cylinder tube deep-hole drilled and skive-roller burnished on 8-meter horizontal machining line, bore straightness within 0.05mm per meter.
Piston rod fully quenched and tempered 42CrMo forging, tensile strength >= 900 MPa, chrome layer 30-50 um after diamond grinding.
MP5 self-aligning clevis end with GE-series spherical plain bearing, radial load capacity 260 kN, maintenance-free during service life.
100% factory tested at 375 Bar static proof pressure for 10 minutes; every unit shipped with individual test report and QC certificate.
Standard delivery: 15-25 days for custom stroke; short-stroke variants available ex-stock. Repair kits (seals + wear rings) shipped on request.
Widely used in steel rolling mills, forging presses, continuous casting lines, injection molding machines and heavy hydraulic press applications requiring reliable long-stroke actuation under high cyclic load.
| Parameter | Value |
| Model | CDH1 MP5 160-80-900 |
| Type | Mill Type Differential Cylinder Double Acting |
| Standard | ISO 6022 / DIN ISO 3320 |
| Nominal Pressure | 250 Bar (25 MPa) |
| Static Proof Pressure | 375 Bar (37.5 MPa) |
| Bore Diameter | 160 mm |
| Piston Rod Diameter | 80 mm |
| Stroke Length | 900 mm |
| Area Ratio | 1.33 : 1 |
| Push Force @ 250 Bar | 502.6 kN |
| Pull Force @ 250 Bar | 377.0 kN |
| Mounting Style | MP5 Self-aligning Clevis at Base |
| Cylinder Tube | Cold-drawn ST52 seamless steel H8 tolerance |
| Piston Rod | 42CrMo forged induction-hardened chrome-plated 30-50 um |
| Rod Hardness | >= 55 HRC |
| Seal System | PU/PTFE step seal + wiper (standard) |
| End Cushioning | Adjustable throttle valve both ends |
| Operating Temperature | -20 C to +80 C (NBR seals) |
| Fluid | ISO VG 32-68 mineral oil HL/HLP DIN 51524 |
| Weight (approx.) | 115 kg |
| Test | 100% factory tested with individual QC report |
