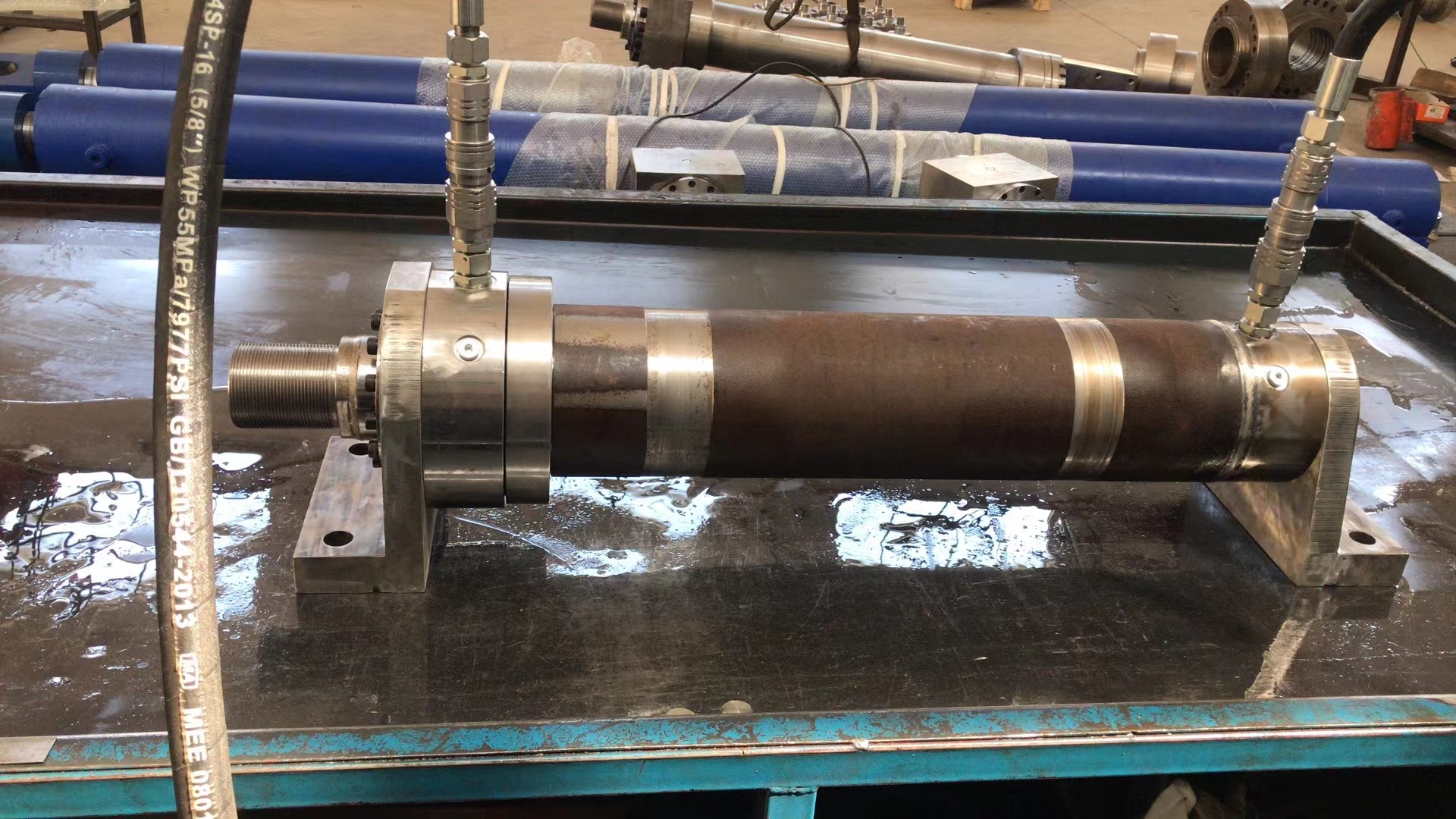

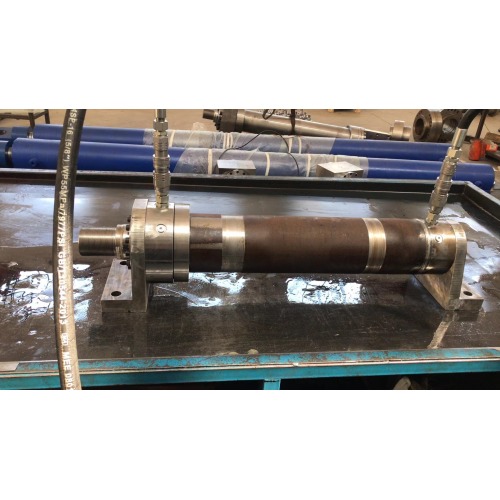

Custom booster hydraulic cylinder

Get Latest Price

Min. Order:	1
Transportation:	Ocean,Land,Air

Contact Now

Product Description

Product Attributes

Model No.: 140 100-600

Brand: Guoyue

Warranty Period: 1.5 Years

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Indonesia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Place Of Origin: China

Service System: Online Support, Video Technical Support

Support Customization: Oem, Odm

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Hydraulic Cylinder,Industrial Hydraulic oil Cylinders,Large Hydraulic Cylinders

Custom booster hydraulic cylinder/90mm rod Industrial Hydraulic Cylinder/hydraulic cylinder 100-380mm stroke/Clamping device hydraulic cylinder

Boosting hydraulic cylinder is a special type of Hydraulic Actuator mainly used to locally increase output pressure without increasing the overall system pressure, in order to meet the requirements of high load conditions. The core principle is to achieve pressure amplification through the difference in area between the large and small pistons - when low-pressure oil enters the large piston chamber, it pushes the small piston chamber to output higher pressure oil, and the ratio of output pressure to input pressure is equal to the inverse proportion of the effective area of the two pistons. This structure is commonly used in situations where short stroke and high pressure are required but the main system is not suitable for high pressure operation, such as clamping devices, stamping equipment, or test benches. Compared to using high-pressure pumps or boosters, hydraulic cylinders for boosting have higher integration, faster response, easier control, and can effectively reduce energy consumption and system complexity.
