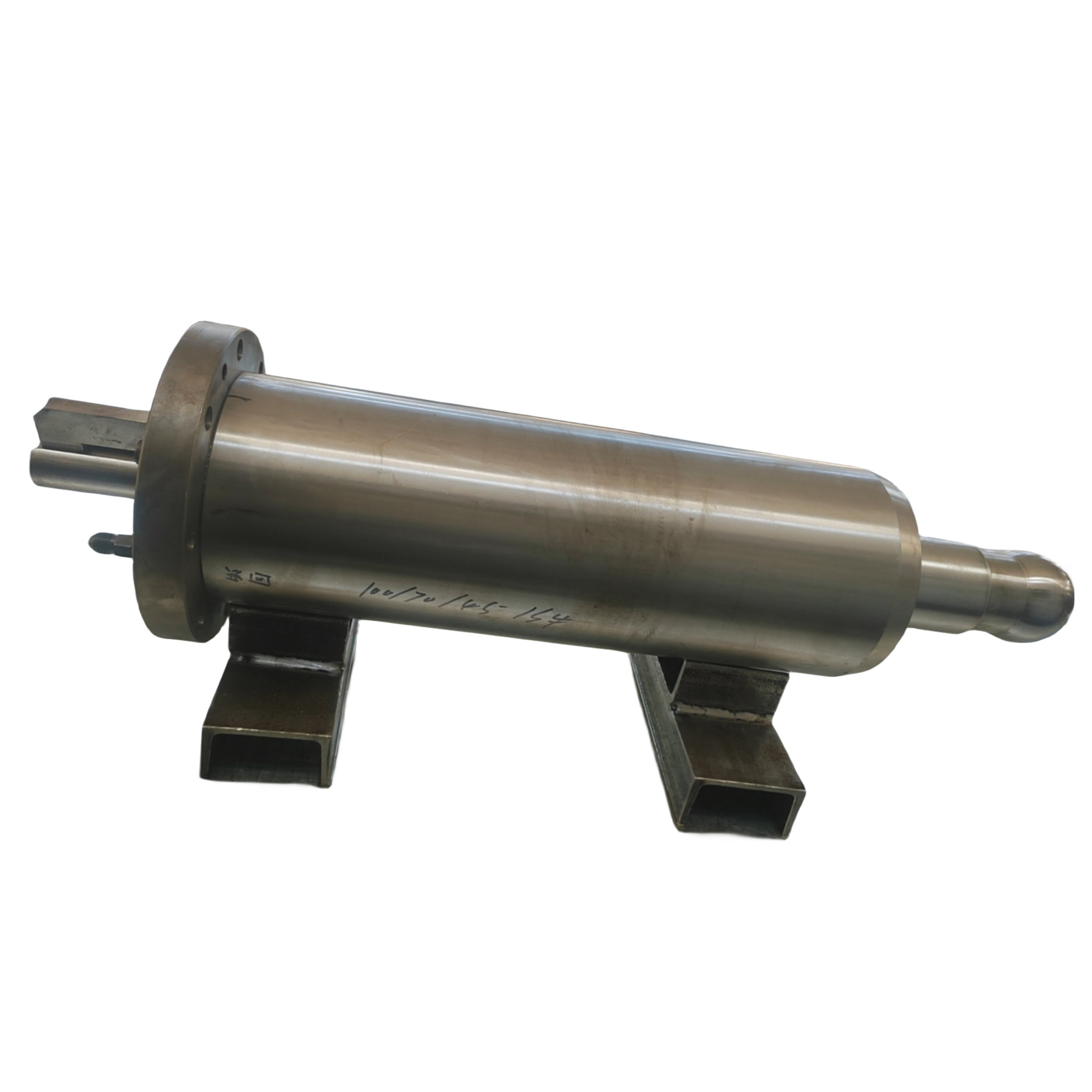

Adjustable angle hydraulic cylinder

Angle-adjusting hydraulic cylinders provide precise angular positioning in applications requiring controlled tilting or rotational movement. These specialized actuators deliver smooth, adjustable angular displacement typically ranging from 5° to 90° with positioning accuracy within ±0.1° in servo-controlled models. Their compact yet robust designs incorporate reinforced trunnion mounts and tapered roller bearings that withstand both axial loads up to 500 tons and significant radial forces during operation. The cylinders feature dual-action hydraulic circuits with integrated dampening valves to eliminate vibration and ensure stable positioning even under dynamic loading conditions.



Key applications include heavy construction equipment like crane boom angle control systems, where they maintain precise load positioning despite wind forces and momentum shifts. In renewable energy, these cylinders adjust solar panel arrays in tracking systems, optimizing sun exposure throughout the day with 0.5° resolution. The aerospace industry utilizes precision versions for aircraft flap and slat positioning, where reliability must meet 10,000+ cycle requirements without maintenance. Industrial automation employs compact models for robotic welding arm positioning, combining 50kg-5ton force capacity with 0.05° repeatability.



Advanced designs now incorporate self-locking mechanisms that maintain position without continuous hydraulic pressure, reducing energy consumption by 60%. Smart versions feature built-in angle sensors with 0.01° resolution and wireless data transmission for real-time monitoring. Corrosion-resistant models with seawater-compatible materials serve offshore applications like ship loader positioning, while high-temperature variants with ceramic coatings operate reliably near 400°C furnace environments. These cylinders' unique ability to combine precise angular control with heavy load capacity makes them indispensable for applications where both force and exact positioning are critical.
