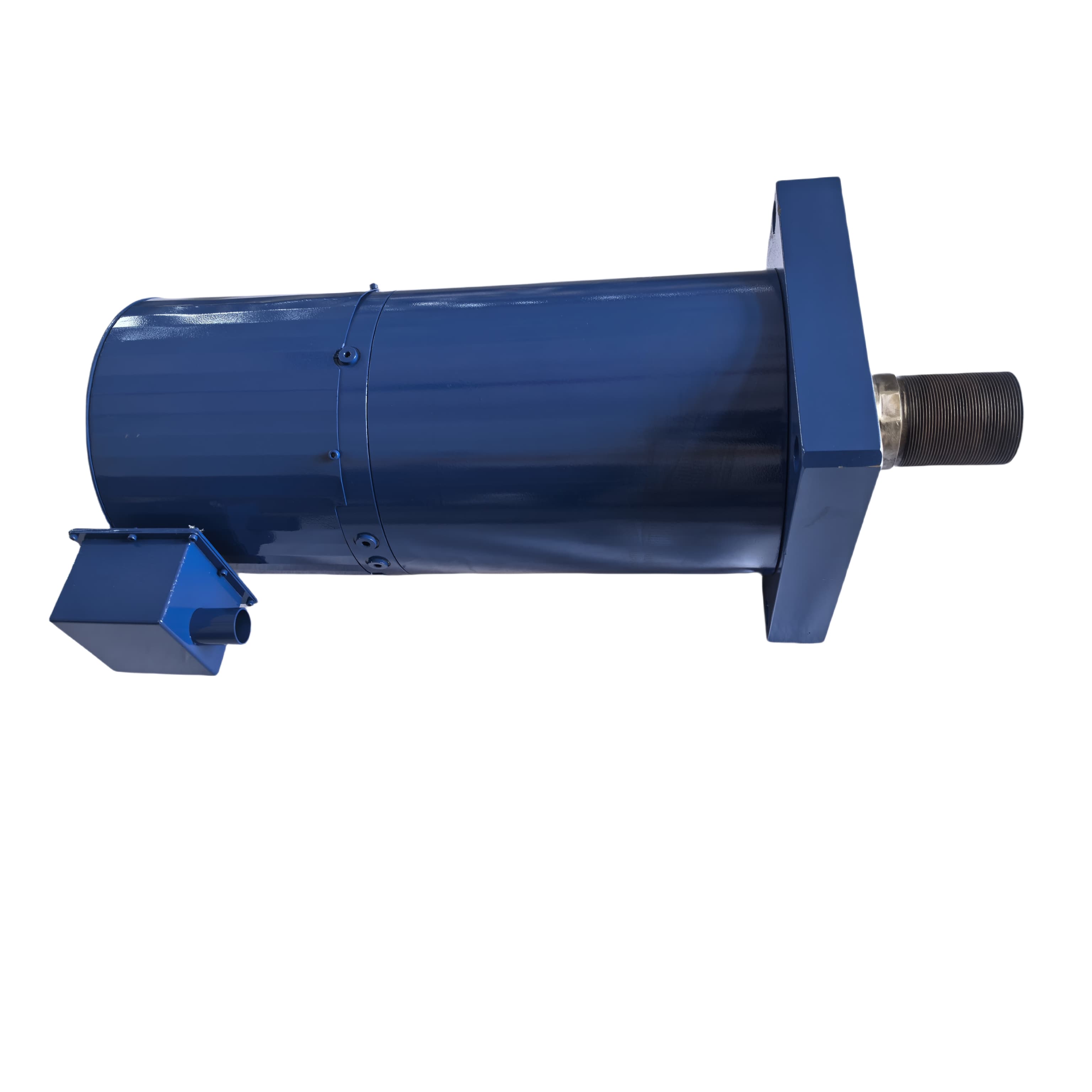

Hydraulic Clamping Force Cylinder

Clamping hydraulic cylinders deliver exceptional holding power and precision across manufacturing applications, providing rigid fixation with forces ranging from 500kg to 500 tons while maintaining positional accuracy within ±0.01mm. These specialized actuators feature self-locking mechanisms that maintain secure clamping without continuous hydraulic pressure, utilizing mechanical wedges or hydraulic pressure-holding circuits for energy efficiency. Their hardened tool steel contact surfaces and multi-stage piston designs compensate for workpiece variations, ensuring consistent pressure distribution in metal stamping dies and injection molds. The cylinders operate reliably in harsh conditions, with high-temperature seals (200°C continuous) for foundry applications and corrosion-resistant stainless steel versions for chemical processing.



Critical applications include CNC machining centers where tool retention cylinders prevent bit slippage during high-speed milling, and automotive welding lines where they maintain panel alignment with 0.05mm repeatability. Aerospace composite curing tools utilize temperature-resistant models with uniform pressure distribution, while die casting machines depend on their rapid clamp/unclamp cycles (<1 second) for production efficiency. Cleanroom-compatible variants with low-outgassing seals serve semiconductor wafer handling systems, and explosion-proof designs secure hazardous material processing equipment.



Advanced features include integrated strain gauges for real-time force monitoring, preventing part deformation in delicate machining operations. Compact through-bore designs enable space-efficient installation in crowded tooling setups, while modular configurations allow custom stroke adaptations. Smart clamping systems now connect to Industry 4.0 networks, providing predictive maintenance alerts through embedded sensors tracking seal wear and load cycles. The combination of brute holding force, precision control, and adaptability makes these cylinders indispensable for modern manufacturing where workpiece security directly impacts quality and safety.
