Model No.: CDH1 MF3 220-150-290
Brand: GUOYUE
Origin: China
The file is encrypted. Please fill in the following information to continue accessing it

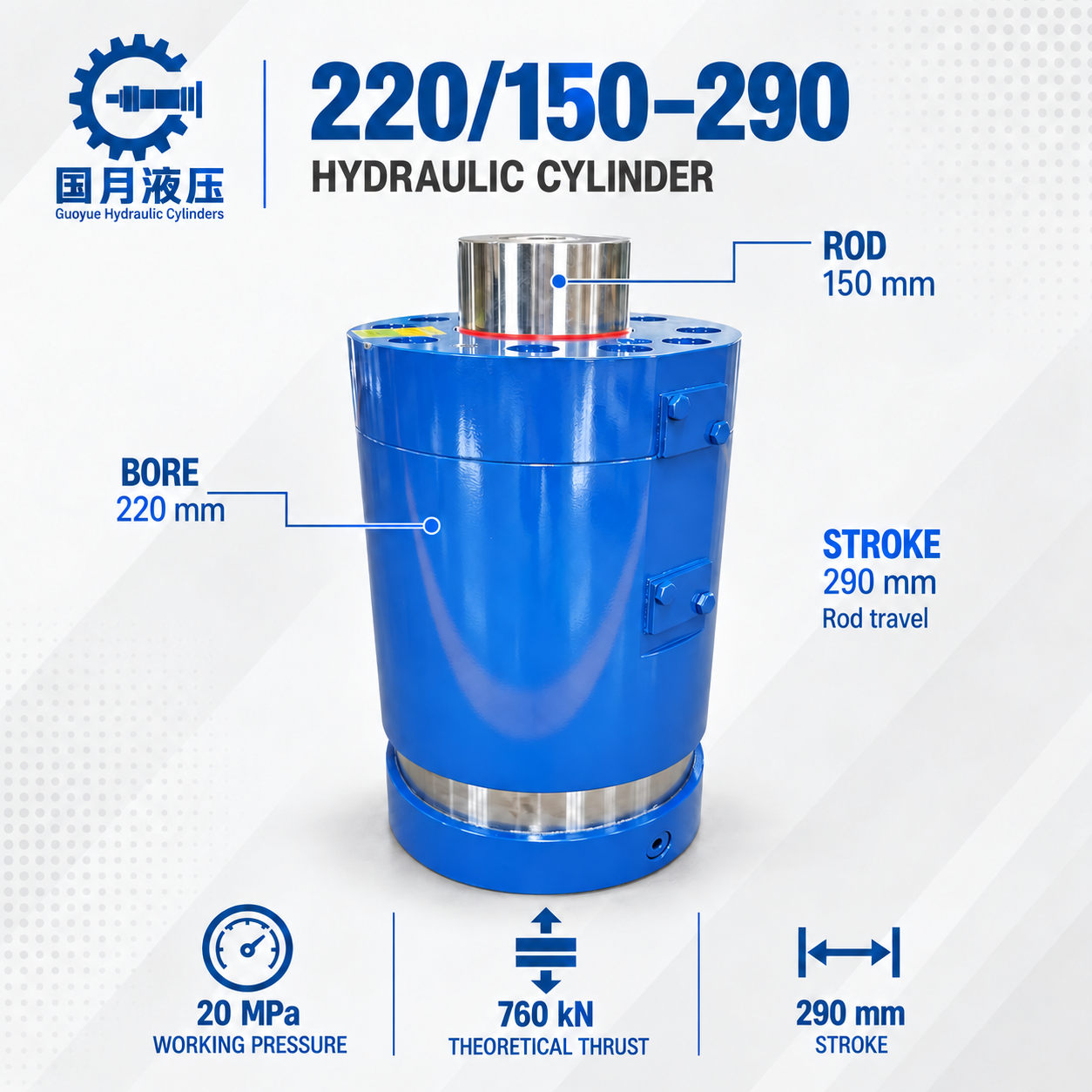

Guoyue Hydraulic Cylinders presents a custom Hydraulic Cylinder with a 220 mm bore, 150 mm rod diameter and 290 mm stroke. At a working pressure of 20 MPa (200 bar), its theoretical extension thrust is approximately 760 kN. Actual output depends on operating conditions, including friction and return-line back pressure.
Product specifications:
• Bore diameter: 220 mm
• Rod diameter: 150 mm
• Stroke: 290 mm
• Working pressure: 20 MPa / 200 bar
• Theoretical extension thrust: approximately 760 kN
