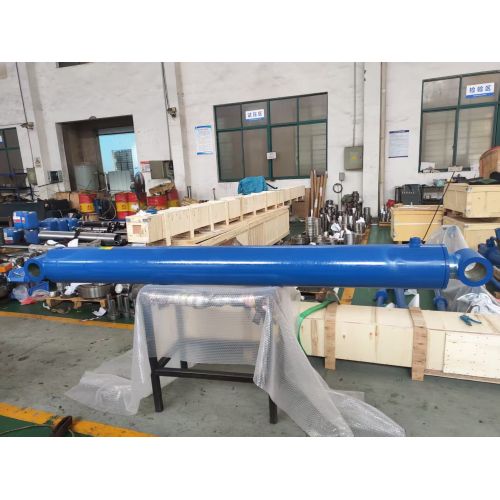

Custom Heavy-duty CDL1 MF4 Hydraulic Cylinders

Key References: CG series Hydraulic Cylinder / ISO 6022 hydraulic cylinder / double acting mill cylinder / heavy duty round body cylinder

• Engineered for high-frequency industrial cycles following ISO 6022 and DIN 24333 precision standards.
• Nominal pressure rating of 160 Bar (16 MPa) with a rigorous 240 Bar static proof test for every unit.
• Utilizes a robust heavy duty Round Body Cylinder architecture to eliminate the structural weaknesses of traditional tie-rod designs.
• Customizable bore diameters (up to 1000mm) and Precision Long Stroke Hydraulic Cylinder options for specific project needs.

• Designed as a 100% Rexroth Replace Hydraulic Cylinder, ensuring seamless mechanical and dimensional interchangability for global maintenance.
• Equipped with premium imported seal kits (Parker/SKF/Hallite) to maintain zero-leakage performance under extreme thermal and mechanical stress.
• Unlike standard actuators, our Custom Heavy-duty CDL1 MF4 Hydraulic Cylinders feature reinforced mounting flanges for superior vibration resistance.
• The piston rod undergoes induction hardening and precision grinding (Ra < 0.4μm) followed by heavy hard chrome plating (30-50μm) for maximum wear resistance.

The double acting mill cylinder principle provides balanced bi-directional hydraulic force, essential for the synchronized movements required in complex industrial automation. This design maximizes force density while maintaining a compact footprint.

• Metallurgical Sector: Ideal for steel mill rolls, tilt mechanisms, and ladle turret control.
• Forging Industry: The primary choice of Hydraulic Cylinder for Large-scale Forging Presses where rapid, high-impact force is required.
• Infrastructure: Applied in civil engineering gates, bridge lifting, and heavy-duty maritime cranes requiring high-reliability actuators.

* Guoyue provides full technical support and customized CAD drawings for your specific heavy-duty hydraulic integration.
